Enable on pipelines & cloning

An active integration sends no traffic until BYO SMS is enabled for the pipeline. Complete Build an integration — not applicable to a managed Vodafone integration, which Akedly builds — and Test & activate first, then enable it for a pipeline — optionally cloning an integration for pipeline-specific coverage.

Managed Vodafone integrations differ

BYO SMS here describes an integration you build and own. If Akedly operates a managed Vodafone integration for your account, several of the capabilities described below are fixed by Akedly and are not yours to set — see Managed Vodafone.

Where to set it

Open an authentication pipeline in Authentication → Setup → Pipelines, then find BYO-SMS routing in its configuration panel. Utility pipelines live under Utilities → Pipelines and are gated by the same routing switch. Build and test the integration first — or, for a managed Vodafone integration, fill in the parts you own and get it past its readiness gates. Creating and cloning a managed integration are gated on pilot provisioning, not withheld from you: once Akedly has provisioned your account you do both yourself, and the fixed managed fields stay fixed in the copy.

View in dashboardAuthentication → Setup → Pipelines

Open a pipeline and configure its BYO-SMS routing.

If the pipeline editor shows no BYO-SMS routing section, your account does not have BYO SMS yet — arrange entitlement with Akedly.

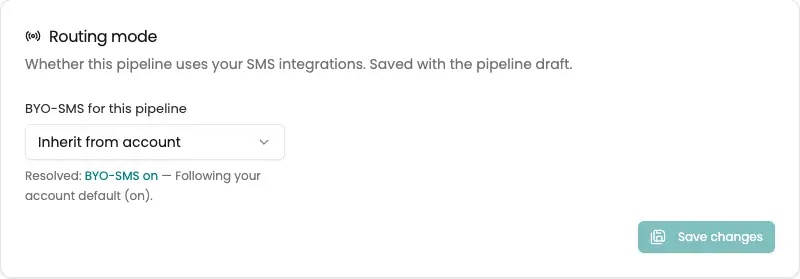

Turn BYO SMS on for a pipeline

Under Routing mode, BYO-SMS for this pipeline has three modes that control whether this pipeline routes through BYO SMS.

Name
Inherit from account
Type
select
Description
Follow the account-wide default Akedly sets for you — the customer dashboard has no account-wide switch, so contact Akedly to change it. The card shows the resolved result, such as "Resolved: BYO-SMS on — Following your account default (on)."
Name
On for this pipeline
Type
select
Description
Force BYO SMS on for just this pipeline — the self-serve way to enable it without an account change.
Name
Off for this pipeline
Type
select
Description
Force BYO SMS off for this pipeline. OTP SMS uses Akedly's senders where available; utility SMS has no Akedly SMS route and fails when it requires BYO SMS.
Name
Save changes
Type
button
Description
Select Save changes to save the routing mode with the pipeline draft.

Active is not the same as routing

Even a passing, active integration sends nothing until the pipeline resolves to BYO-SMS on — On for this pipeline, or Inherit from account while Akedly's account default is on — and an active integration covers the destination country.

How Akedly picks the integration

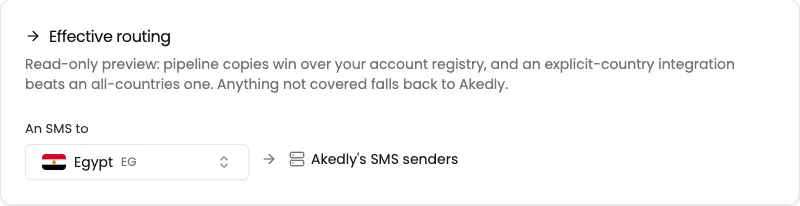

Use the read-only Effective routing preview to inspect the resolved route for a destination.

Name
Pipeline copy first
Type
precedence
Description
An active integration cloned onto this pipeline wins over an active integration in your account registry.
Name
Specific country beats catch-all
Type
coverage
Description
An active integration that lists the destination country wins over an active all-countries (catch-all) integration in the same scope.
Name
Otherwise Akedly
Type
fallback
Description
For OTP, a destination no active integration covers falls back to Akedly's own SMS senders. When a utility send resolves to SMS, it has no Akedly SMS fallback and returns a BYO routing error when no integration covers it. See the Reference for request-chain failure behavior.

Within one scope, active integrations cannot overlap: each destination country belongs to at most one active integration, plus at most one catch-all. Akedly blocks activating a second integration that would claim a country already covered in the same scope.

Select a country in the preview to verify An SMS to [country] resolves where you expect. The preview does not change routing.

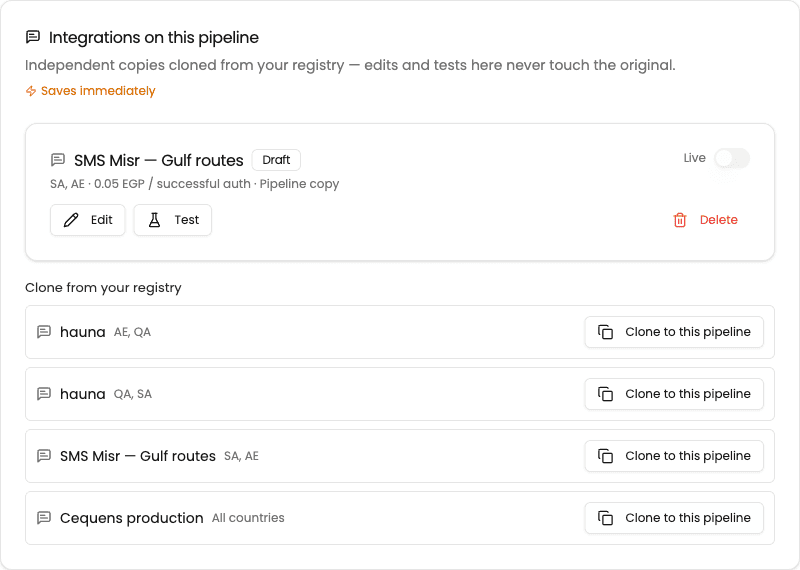

Cloning an integration onto a pipeline

Under Integrations on this pipeline, use Clone from your registry to create a pipeline-scoped copy.

Name
Clone to this pipeline
Type
button
Description
Create a pipeline-specific copy of the registry integration, including its coverage and stored credentials. Once active, the pipeline copy takes precedence over the registry when both cover the same destination country.
Name
Independent copy
Type
copy-by-value
Description
"Independent copies cloned from your registry — edits and tests here never touch the original." The reverse holds too: updating the registry does not change existing clones — re-clone to refresh from an updated source.
Name
Draft → Live
Type
status
Description
A fresh clone lands as Draft. It must pass its own activation test in its own pipeline scope, then be turned Live, before it can route. Follow the Test & activate process.
Name
Own SMS
Type
billing
Description
The clone copies the source's integration settings, including any integration fee override. Its resolved Own SMS fee is shown on the card, for example "0.05 EGP / successful auth" (the default; an Akedly-set account or integration override may apply when no integration override is set).
Name
Registry routing
Type
routing
Description
Cloning is optional. An active registry integration already routes for any pipeline that resolves to BYO-SMS on. Clone only when one pipeline needs a different integration, coverage, or credentials than your account-wide registry default.

What's next

See the Reference for routing, failure behavior, billing, and dashboard errors.
