V2.0 Widgets - Drop-in Authentication

V2.0 Widgets provide a fully-managed authentication interface that runs in an iframe with zero frontend complexity. Unlike the standard API (v1.0), you get a complete OTP flow with built-in security and fraud detection.

Why Choose V2.0 Widgets

For a detailed comparison of V1.2, V2.0, and V1.0, see the Authentication Methods overview.

How V2.0 Widgets Work

The authentication flow is simple and secure:

Step 1: Create Widget in Dashboard

Before integrating, create a widget in your Akedly dashboard.

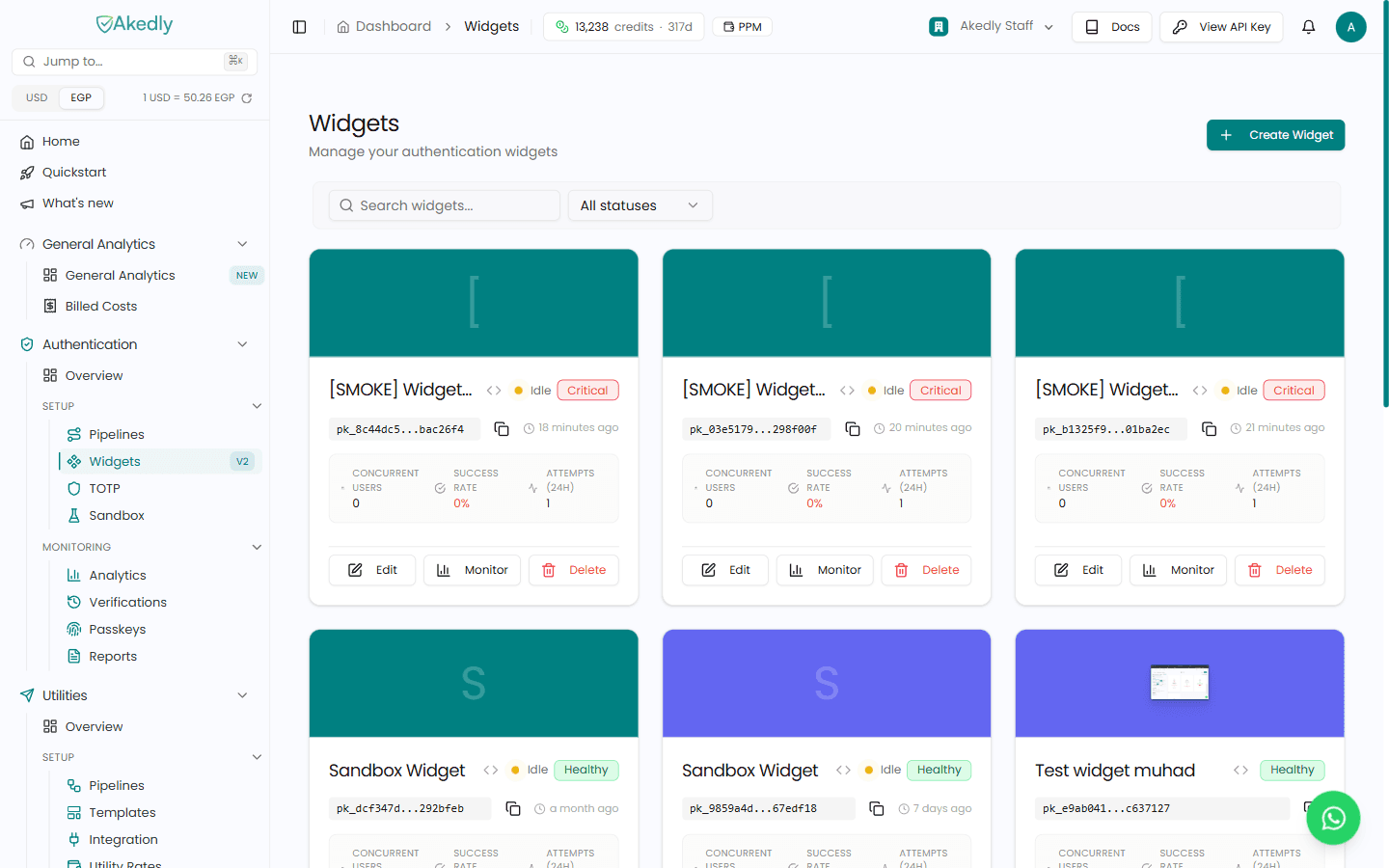

Dashboard Navigation

1. Log in to your Akedly dashboard at https://app.akedly.io
2. Navigate to Widgets in the left sidebar
3. Click Create New Widget

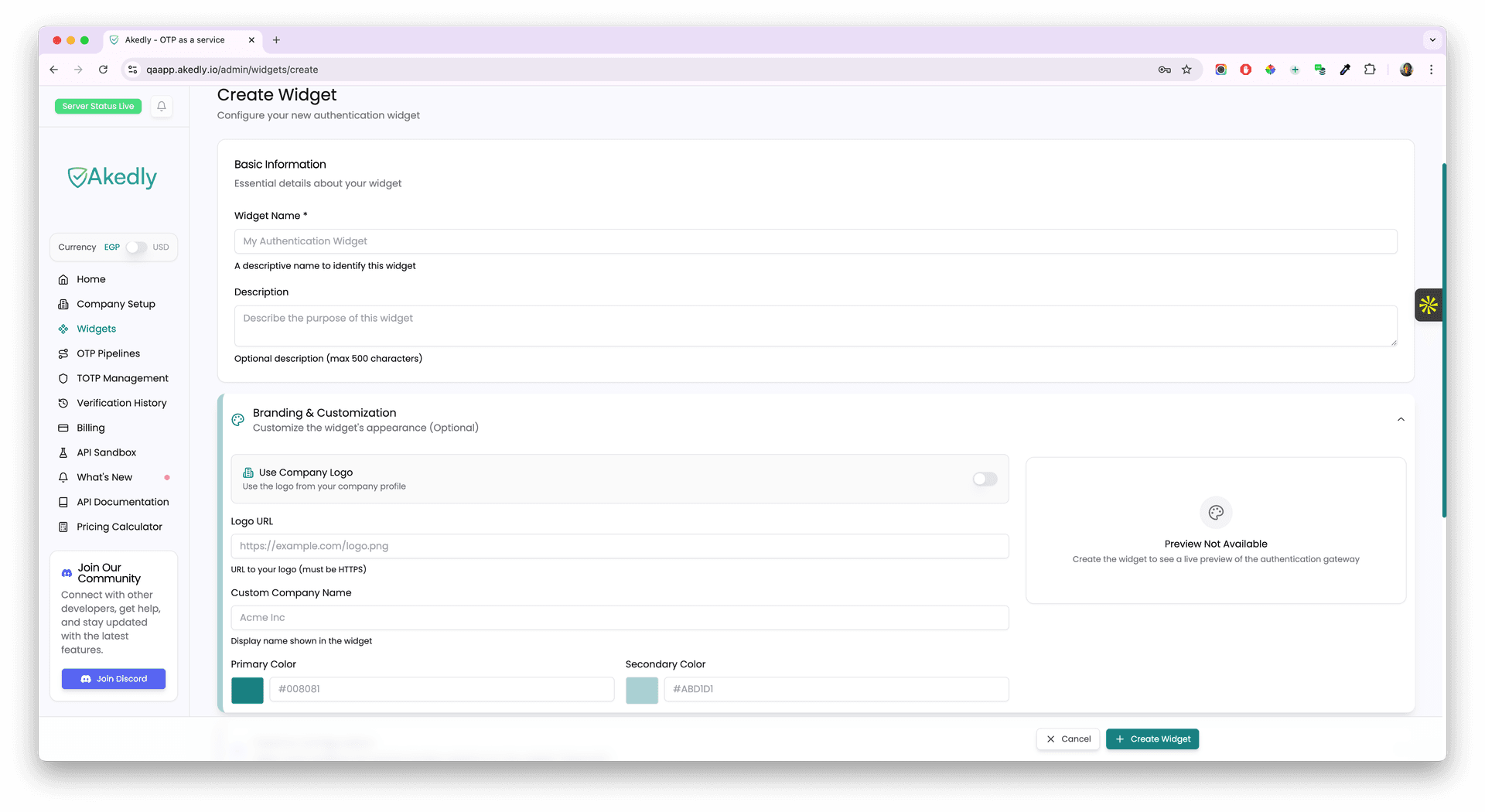

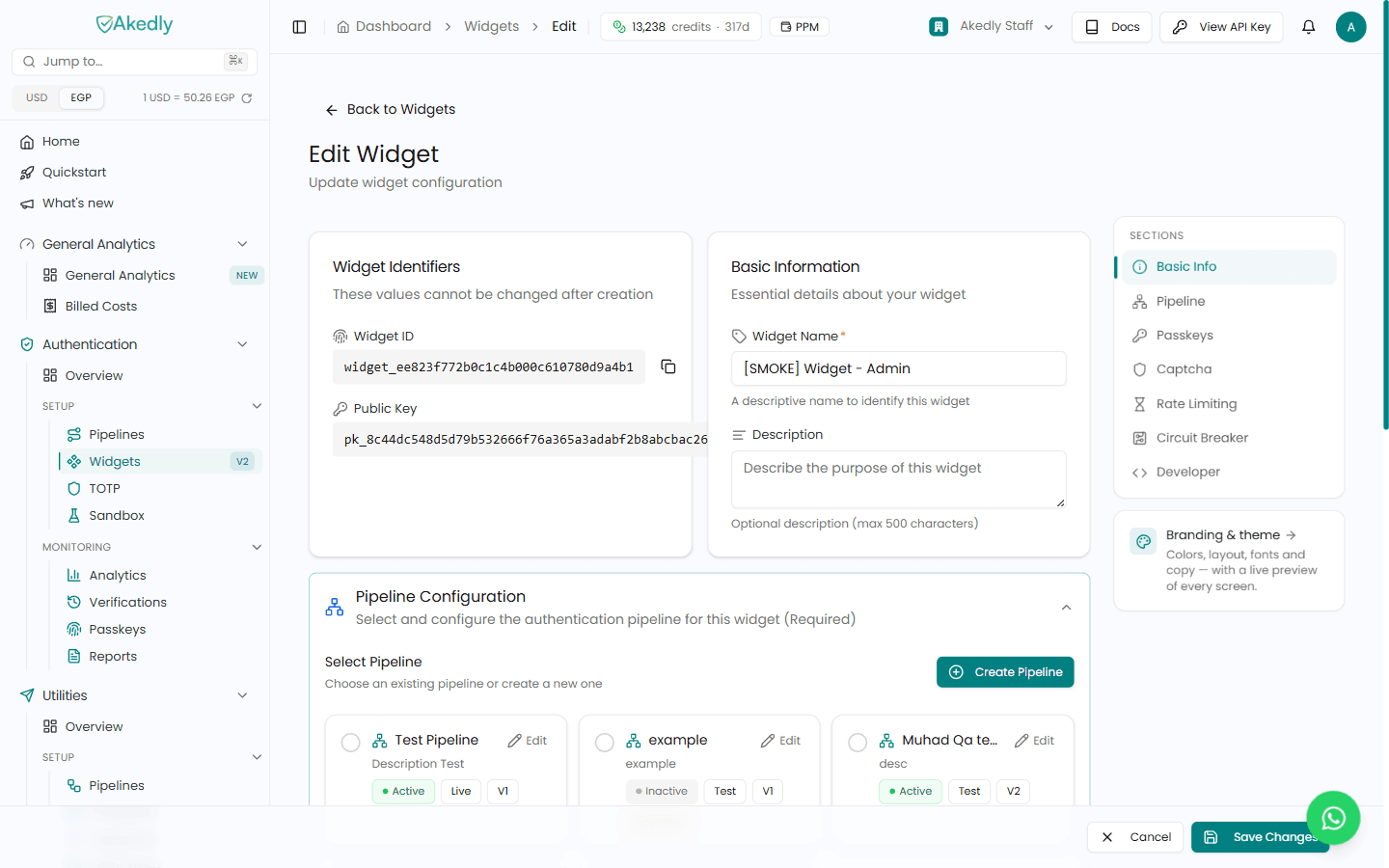

Basic Settings

• Name

  Widget Name

  Type

  string

  Description

  Internal name for your reference (e.g., "Production Login Widget")

• Name

  Description

  Type

  string

  Description

  Optional description of where this widget is used

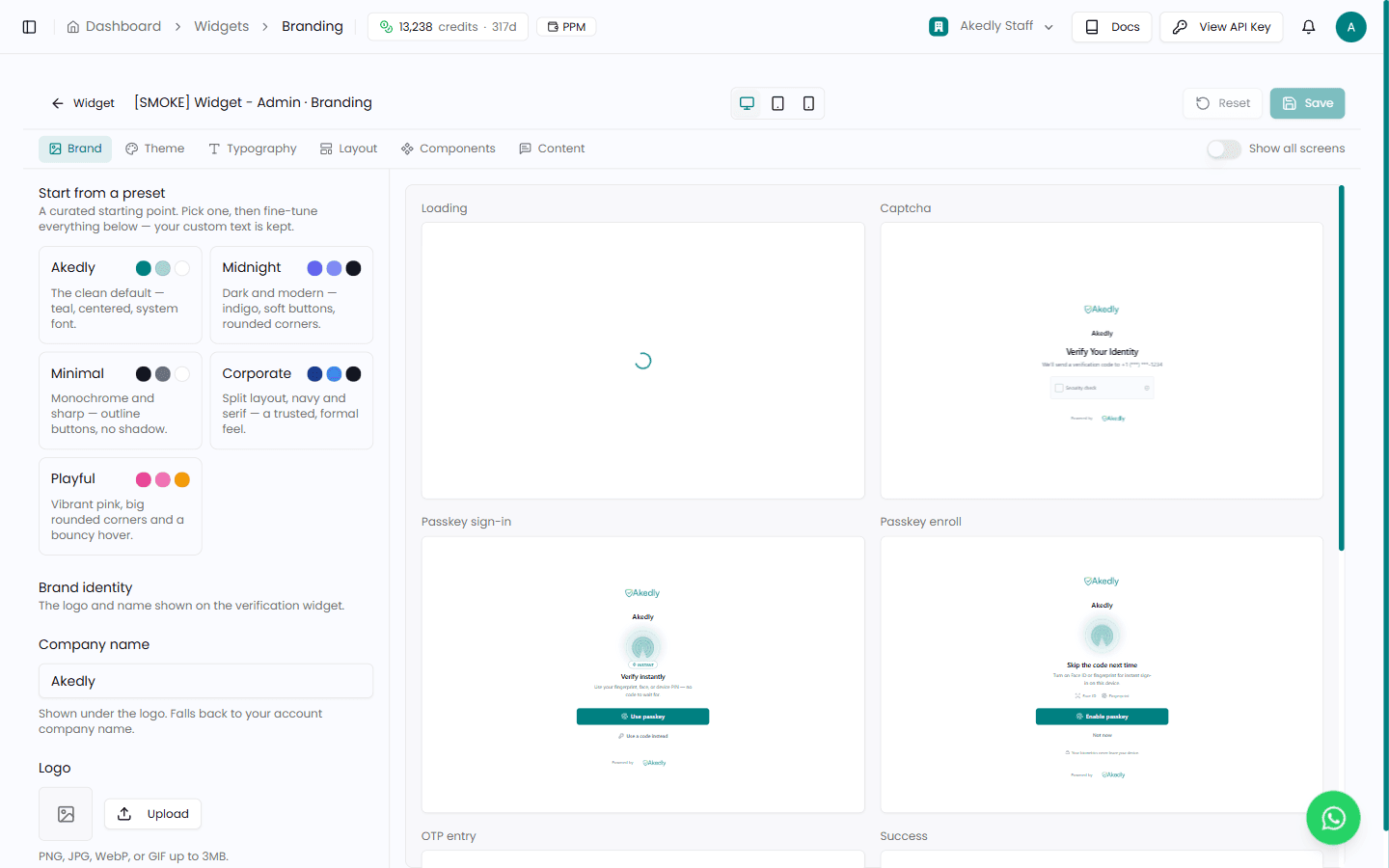

Branding Customization:

• Name

  Company Logo

  Type

  file

  Description

  Upload your logo (displayed at top of widget)

• Name

  Company Name

  Type

  string

  Description

  Your company name (shown in widget header)

• Name

  Primary Color

  Type

  string

  Description

  Main brand color for buttons and accents

• Name

  Secondary Color

  Type

  string

  Description

  Background and secondary UI elements

Callback URLs

V2.0 Widgets support two types of callbacks. See Pipeline Setup for detailed configuration, or navigate to Pipelines → Select your pipeline → Callback URLs.

https://yourapp.com/auth/callback

https://yourapp.com/auth/callback?status=success&transactionId=mtx_abc123&attemptId=attempt_xyz789×tamp=2025-01-16T12:00:00Z&meta_userId=user_12345&meta_orderId=order_abc789

https://yourapp.com/auth/callback?status=failed&error=INVALID_OTP&transactionId=mtx_abc123&attemptId=attempt_xyz789×tamp=2025-01-16T12:00:00.000Z&meta_userId=user_12345&meta_orderId=order_abc789

https://yourapp.com/api/webhooks/akedly

Frontend Redirect Query Parameters:

• Name

  status

  Type

  string

  Description

  "success" or "failed"

• Name

  transactionId

  Type

  string

  Description

  The transaction ID from the verification flow

• Name

  attemptId

  Type

  string

  Description

  The original attemptId you created

• Name

  timestamp

  Type

  string

  Description

  ISO 8601 timestamp of when authentication completed

• Name

  error

  Type

  string

  Description

  Error code (only present if status=failed)

• Name

  meta_*

  Type

  string

  Description

  Custom metadata fields from publicMetadata. Each key is prefixed with meta_. Object values are JSON stringified.

Security Settings

Configure captcha, rate limiting, and fraud protection in the widget security settings panel.

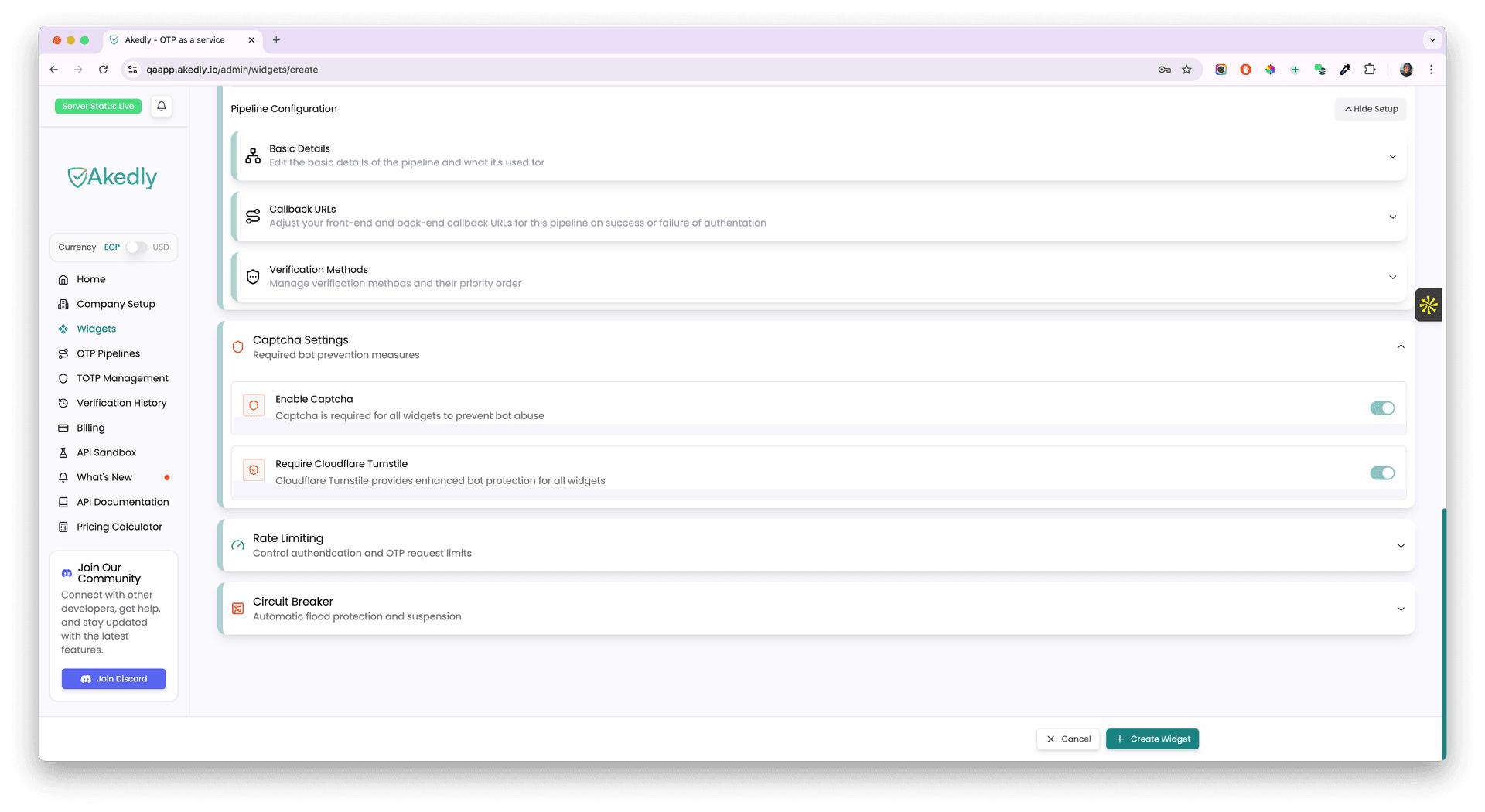

Captcha Settings

Protect your widget from automated attacks with built-in captcha verification.

• Name

  Enable Captcha

  Type

  boolean

  Description

  Always enabled by default. Captcha verification is mandatory for all widget interactions and cannot be disabled.

• Name

  Require Cloudflare Turnstile

  Type

  boolean

  Description

  Always enabled. Cloudflare Turnstile is required to protect your quotas and widgets from bot spam. This setting cannot be turned off to ensure maximum security against automated abuse.

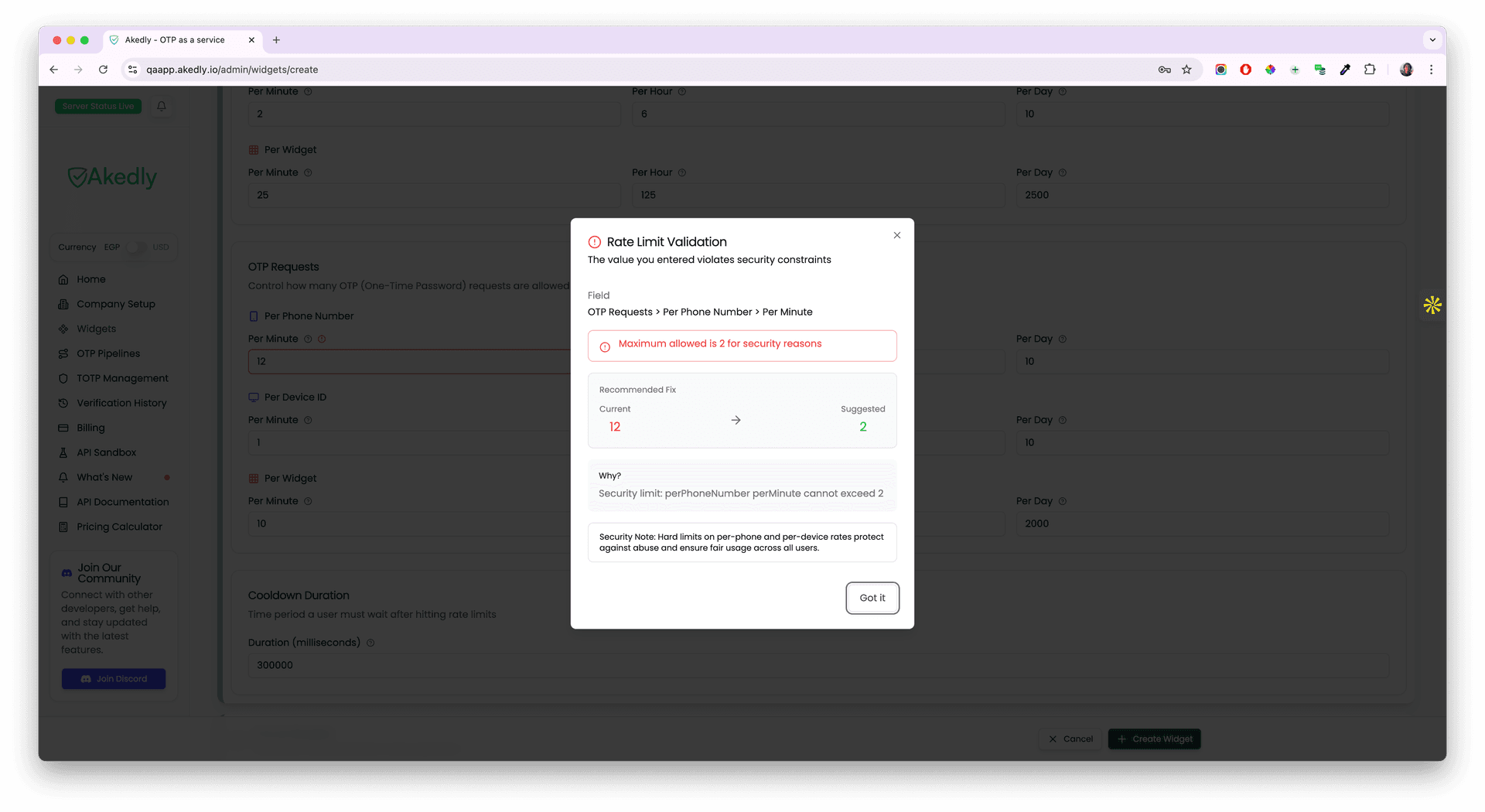

Rate Limiting

Control authentication and OTP request limits to protect your widget from abuse. Rate limits are configured across three dimensions: per phone number, per device ID (fingerprinting), and per widget.

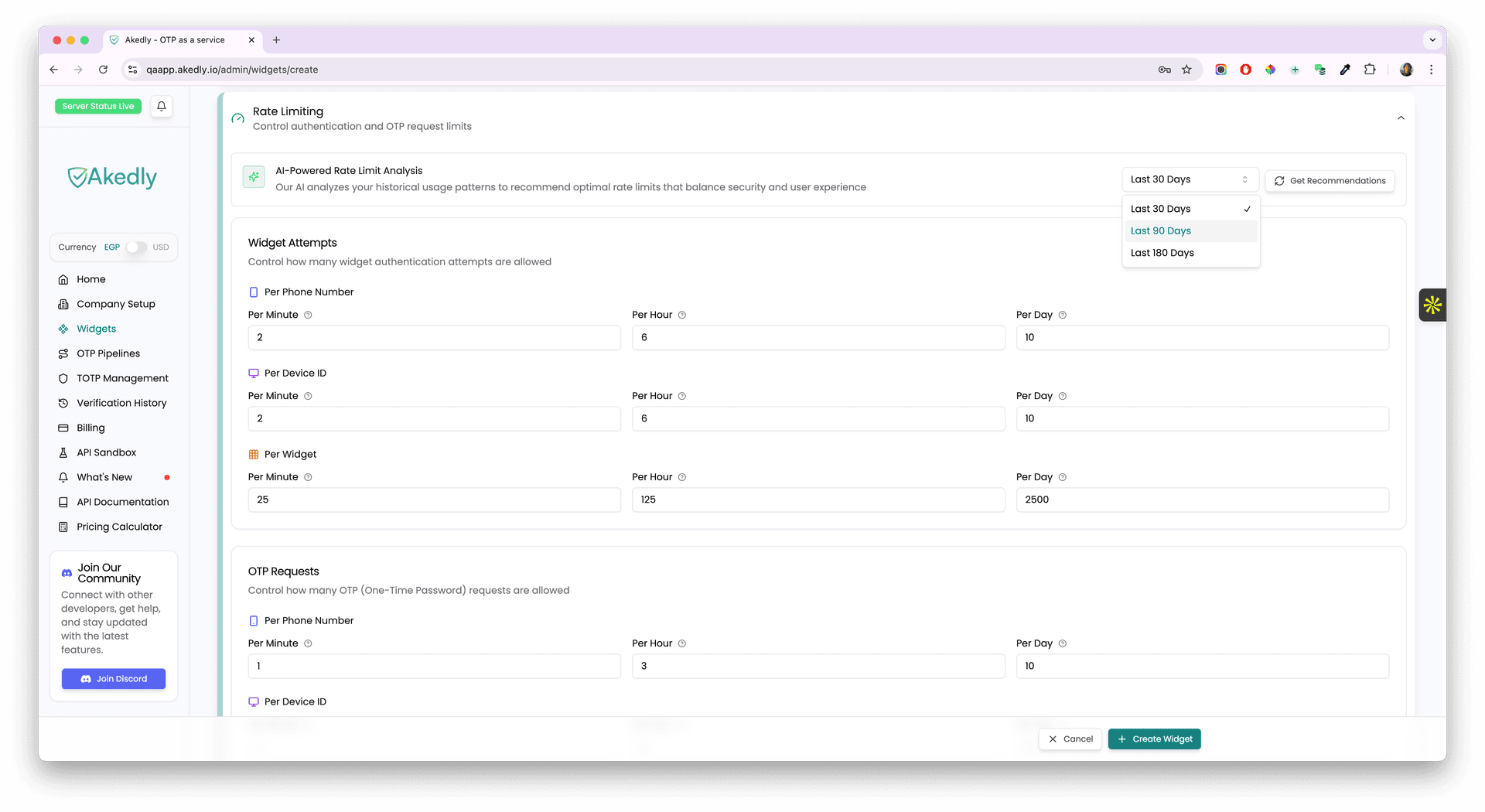

Widget Attempts

Widget attempts track iframe loads and authentication attempts, regardless of whether they pass captcha or fingerprinting. A failed captcha still counts as an attempt, even if no OTP is sent.

Per Phone Number Limits

Per Device ID Limits

Per Widget Limits

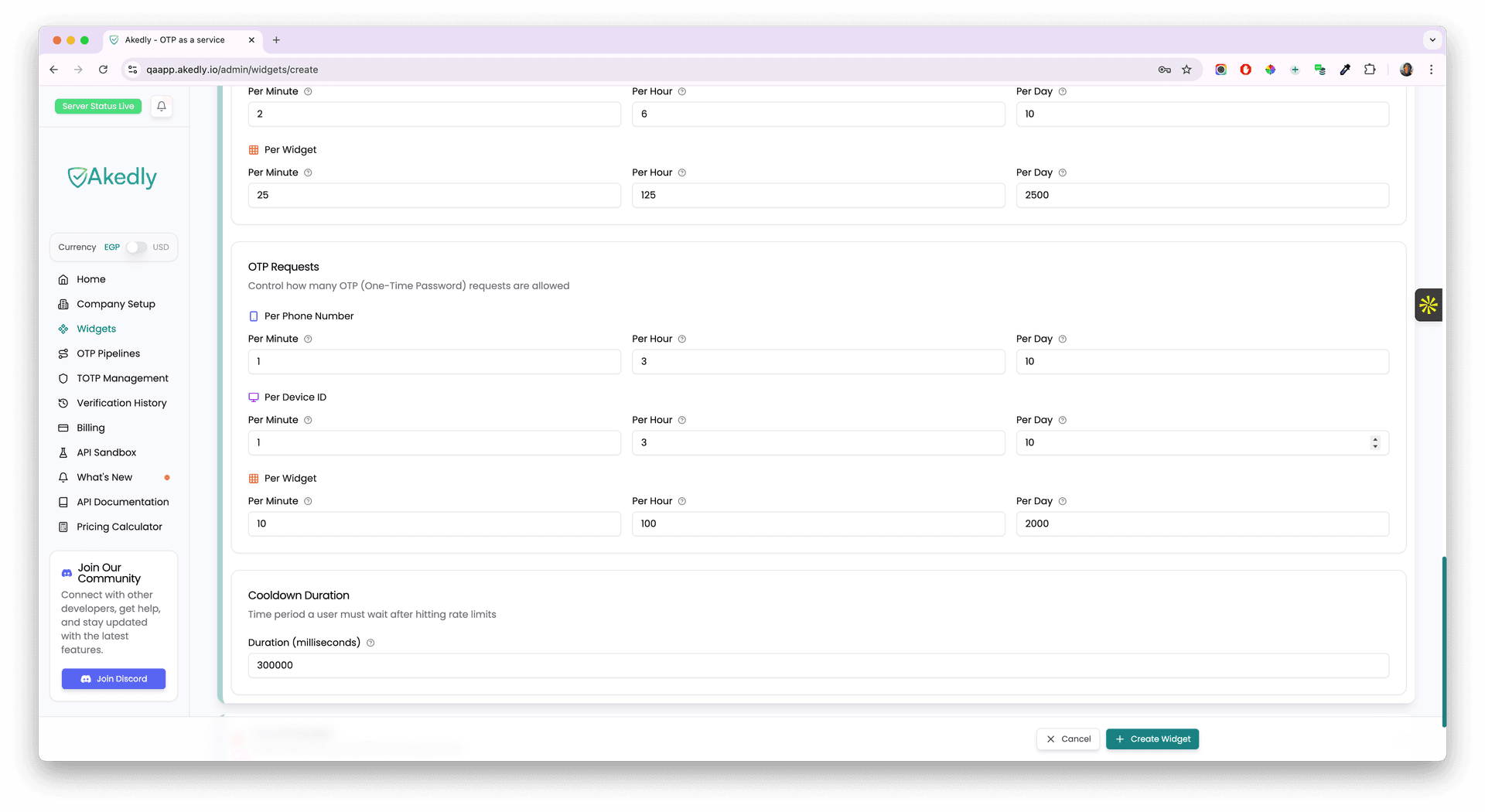

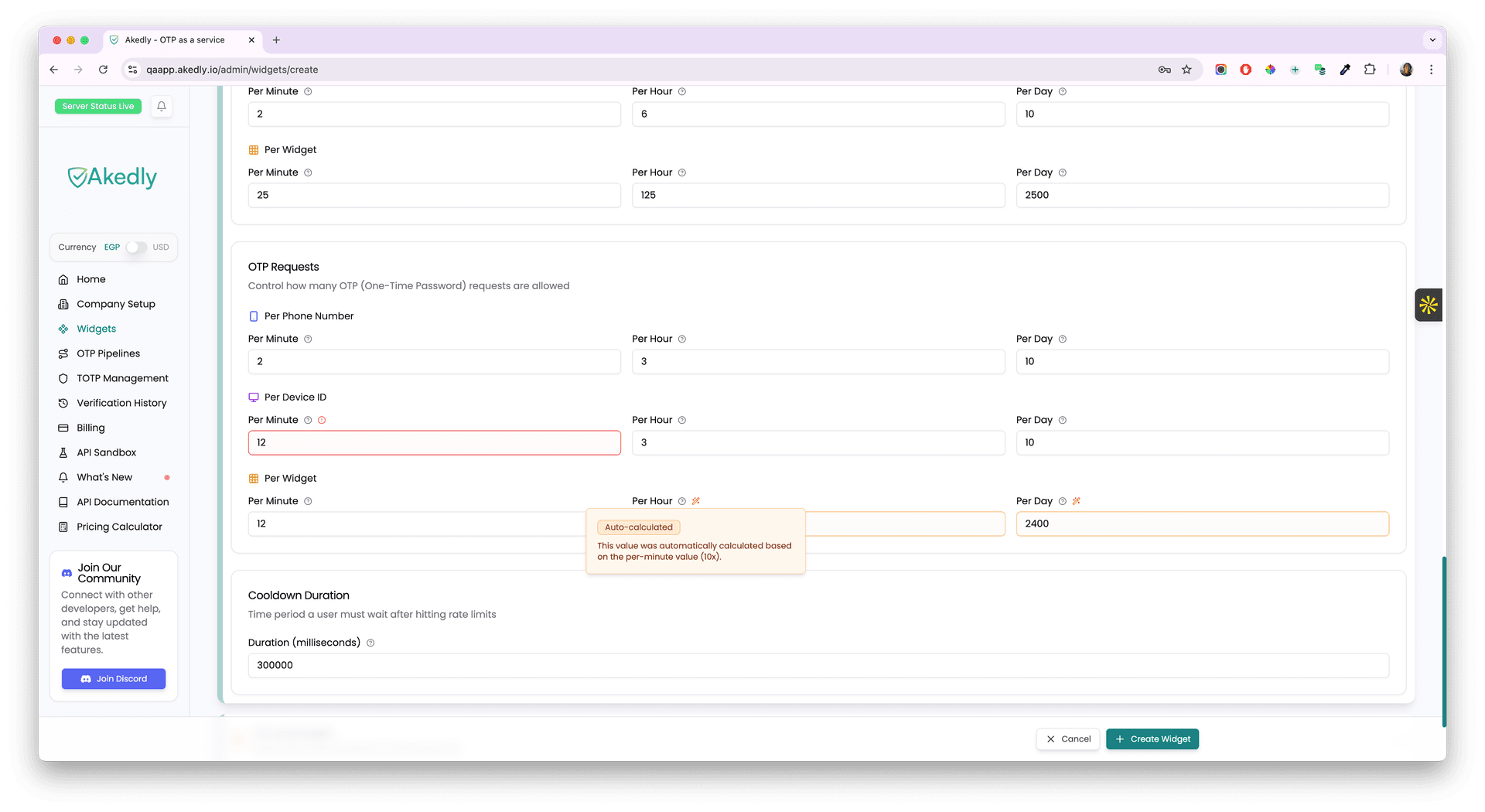

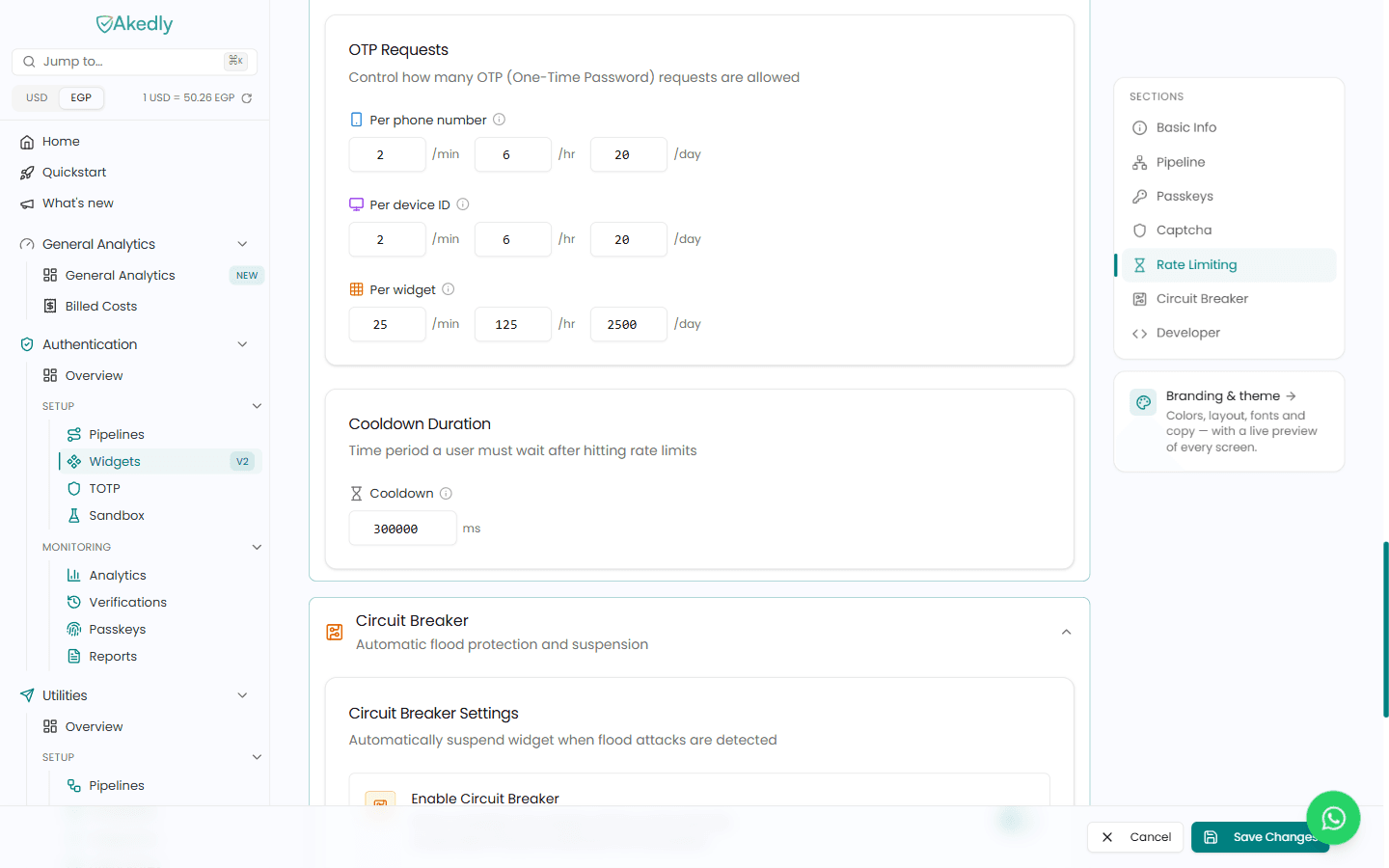

OTP Requests

OTP requests track actual One-Time Password deliveries. These limits apply only when an OTP is successfully sent to the user.

Per Phone Number Limits

Per Device ID Limits

Per Widget Limits

Cooldown Duration

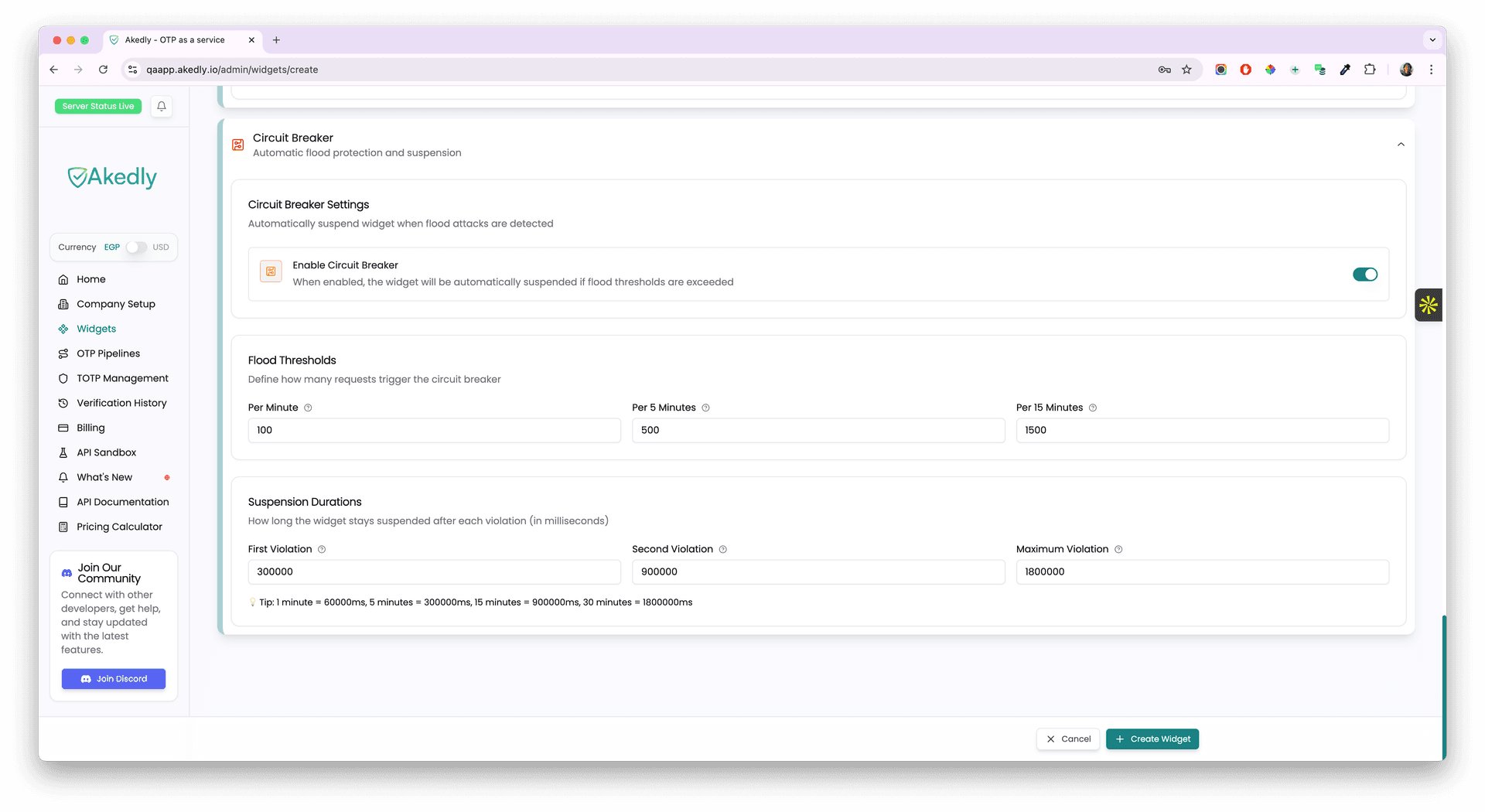

Circuit Breaker

The circuit breaker is your final layer of defense that automatically suspends your widget when abnormal traffic patterns are detected. It works alongside captcha and rate limiting to provide comprehensive protection.

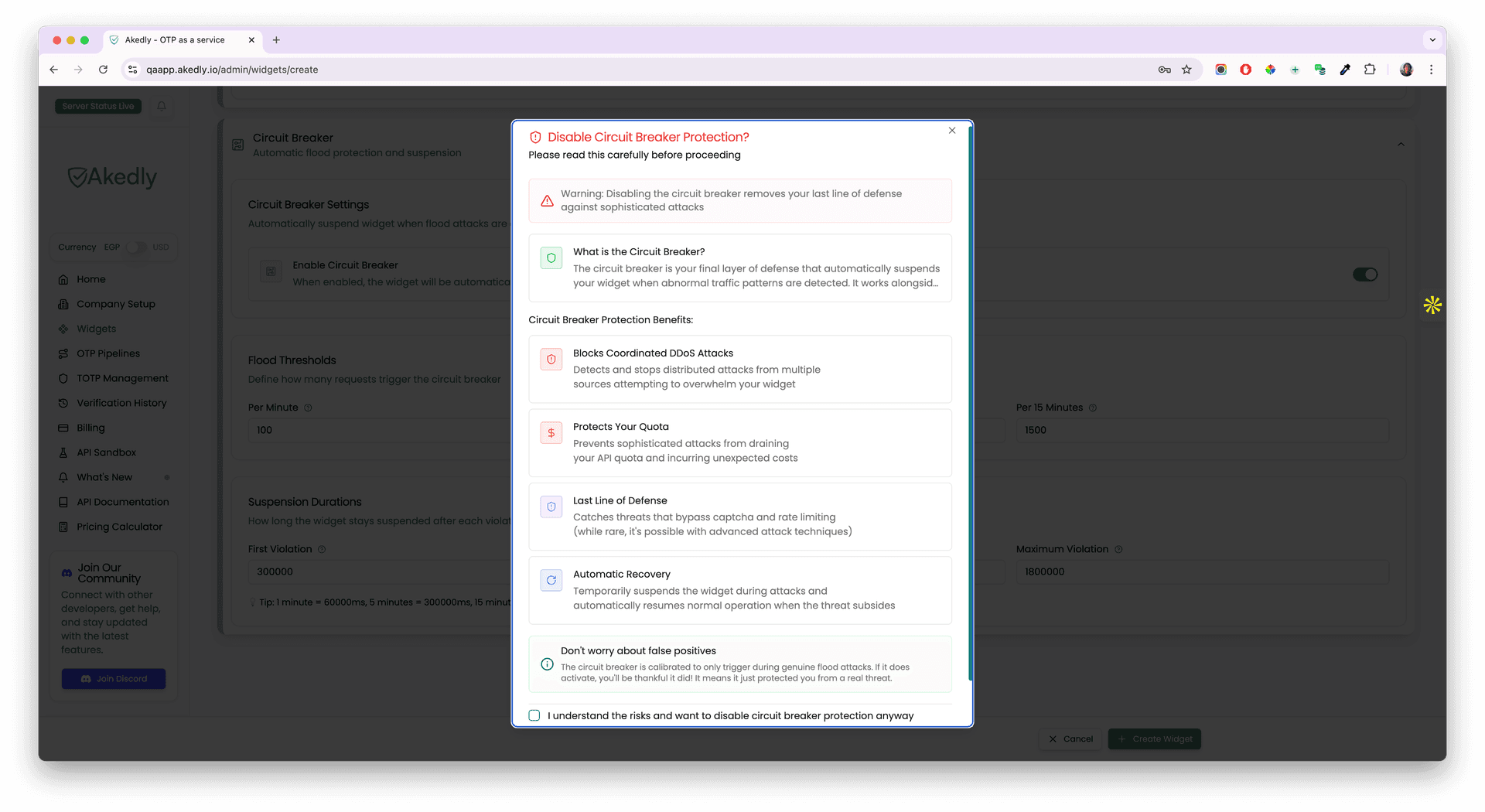

Why Circuit Breaker Matters:

• Blocks Coordinated DDoS Attacks: Detects and stops distributed attacks from multiple sources attempting to overwhelm your widget
• Protects Your Quota: Prevents sophisticated attacks from draining your API quota and incurring unexpected costs
• Last Line of Defense: Catches threats that bypass captcha and rate limiting (while rare, it's possible with advanced attack techniques)
• Automatic Recovery: Temporarily suspends the widget during attacks and automatically resumes normal operation when the threat subsides

After Widget Creation

Once you create the widget, you'll receive credentials needed for API integration:

• Name

  Widget ID

  Type

  string

  Description

  Internal identifier (e.g., widget_a1b2c3d4...)

• Name

  Public Key

  Type

  string

  Description

  Used in API requests (e.g., pk_x1y2z3...)

• Name

  Secret Key

  Type

  string

  Description

  Used to sign API requests with HMAC-SHA256

The widget secret will only be displayed once at creation. Make sure you copy it as seen in the screenshot. If you lose it, you'll need to regenerate a new secret from the dashboard. Store your secret key in environment variables. Never commit it to version control or expose it to frontend code.

Step 2: Backend - Create Attempt

Your backend is responsible for initiating the authentication flow by creating an "attempt". This is a server-side operation that must never be done from the frontend to protect your widget secret.

Understanding the Flow

Signature Generation (Language-Agnostic)

The signature is the most critical part. Here's how to generate it in any language:

{
  "apiKey": "YOUR_API_KEY",
  "publicKey": "YOUR_PUBLIC_KEY",
  "timestamp": 1234567890123,
  "phoneNumber": "+1234567890"
}

signature = HMAC-SHA256(secret, message)
output = hex_encode(signature)

API Reference

{
  "apiKey": "61b7fgxxxxxxxxxxxx", //Account API key
  "publicKey": "pk_xxxxxxxxxxxx", //Widget's public key
  "signature": "a1b2c3d4e5f6789...", //Secret key
  "timestamp": 170155235400,
  "verificationAddress": {
    "phoneNumber": "+201556645234", // MUST have country code
    "email": "user@example.com" //optional
  },
  "digits": 6, //choose between 4, 5 or 6
  "publicMetadata": {
    //optional
    "userId": "user_12345",
    "orderId": "order_abc789"
  },
  "privateMetadata": {
    //optional - server-only
    "internalUserId": "internal_xyz"
  },
  "customHeaders": {
    //optional - forwarded in webhooks
    "X-Correlation-ID": "corr_abc123",
    "X-Internal-Source": "checkout-flow"
  }
}

{
  "status": "success",
  "data": {
    "attemptId": "attempt_a1b2c3d4e5f6...",
    "iframeUrl": "https://auth.akedly.io/auth?attemptId=...",
    "expiresAt": "2025-01-16T12:05:00.000Z",
    "publicMetadata": {
      "userId": "user_12345",
      "orderId": "order_abc789"
    }
  }
}

Custom Metadata

Attach custom data to verification attempts that gets returned in callbacks. This is useful for tracking users, orders, or sessions through the authentication flow.

{
  .........
  "publicMetadata": { //example of data sent to frontend
    "userId": "user_12345",
    "orderId": "order_abc789",
    "registerSource": "landing_page",
    "preferences": {
      "language": "en",
      "timezone": "UTC+2"
    }
  },
  "privateMetadata": { //example of server-only data
    "internalId": "internal_xyz",
    "sessionToken": "sess_abc123",
    "experimentGroup": "A",
    "sessionData": {
      "cartItems": 3,
      "lastLogin": "2025-01-15T10:00:00Z"
    }
  }
}

Implementation Examples

Complete code examples for creating an authentication attempt in popular backend languages.

const crypto = require('crypto')
const axios = require('axios')

// Environment variables (NEVER expose these in frontend)
const AKEDLY_API_KEY = process.env.AKEDLY_API_KEY
const WIDGET_PUBLIC_KEY = process.env.WIDGET_PUBLIC_KEY
const WIDGET_SECRET = process.env.WIDGET_SECRET

function generateSignature(apiKey, publicKey, secret, timestamp, phoneNumber) {
  const message = JSON.stringify({
    apiKey,
    publicKey,
    timestamp,
    phoneNumber,
  })

  return crypto.createHmac('sha256', secret).update(message).digest('hex')
}

async function createAuthAttempt(phoneNumber, email = null, metadata = {}) {
  const { publicMetadata, privateMetadata } = metadata
  const timestamp = Date.now()

  const signature = generateSignature(
    AKEDLY_API_KEY,
    WIDGET_PUBLIC_KEY,
    WIDGET_SECRET,
    timestamp,
    phoneNumber,
  )

  const response = await axios.post(
    'https://api.akedly.io/api/v1/widget-sdk/create-attempt',
    {
      apiKey: AKEDLY_API_KEY,
      publicKey: WIDGET_PUBLIC_KEY,
      signature,
      timestamp,
      verificationAddress: {
        phoneNumber,
        email,
      },
      digits: 6,
      publicMetadata,
      privateMetadata,
    },
  )

  return response.data.data // { attemptId, iframeUrl, expiresAt, publicMetadata }
}

// Usage in Express route
app.post('/api/auth/start', async (req, res) => {
  try {
    const { phoneNumber, email, userId, orderId } = req.body

    const attempt = await createAuthAttempt(phoneNumber, email, {
      publicMetadata: { userId, orderId },
      privateMetadata: { internalId: req.session.internalId },
    })

    res.json({
      success: true,
      attemptId: attempt.attemptId,
      iframeUrl: attempt.iframeUrl,
    })
  } catch (error) {
    res.status(500).json({
      success: false,
      error: error.response?.data || error.message,
    })
  }
})

Step 3: Frontend - Open Widget

Once you receive the attemptId and iframeUrl from your backend, open the Akedly widget — in an iframe on the web, or in a system browser in a mobile native app. Do not load it in a raw WebView (see Mobile native apps below).

Implementation Options

Web — iframe. Embed the widget in an iframe, in a modal/dialog (recommended) or inline in your page. It fits a 500px × 700px iframe. For passkeys, add the allow attribute — see Passkeys.

Web — full-page redirect (no iframe). Prefer not to embed? Send the whole browser tab to the iframeUrl. When the user finishes, the widget redirects back to your pipeline's Frontend Callback URL with the same query parameters — so there's nothing to wire up beyond that one pipeline setting. A top-level page also has WebAuthn permission natively, so passkeys work with nothing to add (the allow attribute is iframe-only). Good when an iframe is awkward (CSP, small screens) or you just prefer a hosted page. See the snippet below.

Mobile native apps — a system browser (required). Open the widget in ASWebAuthenticationSession or SFSafariViewController (iOS), or Chrome Custom Tabs (Android) — never a raw WKWebView / Android WebView. See the Mobile native apps section below for why and how.

Handling Results

How the result reaches you depends on the surface:

1. Web (iframe) — listen for the postMessage AUTH_SUCCESS event, and/or use the redirect to your pipeline's Frontend Callback URL.
2. Web (full-page redirect) — no iframe means no postMessage; the result comes purely from the redirect to your pipeline's Frontend Callback URL.
3. Mobile native (system browser) — there is no parent window, so postMessage does not apply. Use the redirect to your pipeline's Frontend Callback URL (a deep link your app intercepts).

The redirect carries status, transactionId, attemptId, timestamp, and any meta_* parameters in the query string (configured per pipeline — see Pipeline Setup).

import { useState, useEffect } from 'react'

export default function AuthModal() {
  const [isOpen, setIsOpen] = useState(false)
  const [iframeUrl, setIframeUrl] = useState('')
  const [loading, setLoading] = useState(false)

  const startAuth = async (phoneNumber, email = null) => {
    setLoading(true)

    try {
      const response = await fetch('/api/auth/start', {
        method: 'POST',
        headers: { 'Content-Type': 'application/json' },
        body: JSON.stringify({ phoneNumber, email }),
      })

      const data = await response.json()

      if (!data.success) {
        throw new Error(data.error)
      }

      setIframeUrl(data.iframeUrl)
      setIsOpen(true)
    } catch (error) {
      alert('Failed to start authentication: ' + error.message)
    } finally {
      setLoading(false)
    }
  }

  // Listen for postMessage from iframe
  useEffect(() => {
    const handleMessage = (event) => {
      if (event.origin !== 'https://auth.akedly.io') return

      if (event.data.type === 'AUTH_SUCCESS') {
        console.log('Authentication successful!', event.data)
        setIsOpen(false)
        onAuthSuccess(event.data)
      } else if (event.data.type === 'AUTH_FAILED') {
        alert('Authentication failed')
      }
    }

    window.addEventListener('message', handleMessage)
    return () => window.removeEventListener('message', handleMessage)
  }, [])

  const onAuthSuccess = (data) => {
    // Your success logic
    window.location.href = '/dashboard'
  }

  return (
    <>
      <button
        onClick={() => startAuth('+201234567890', 'user@example.com')}
        disabled={loading}
      >
        {loading ? 'Loading...' : 'Login with Phone'}
      </button>

      {isOpen && (
        <div
          style={{
            position: 'fixed',
            top: 0,
            left: 0,
            width: '100%',
            height: '100%',
            background: 'rgba(0, 0, 0, 0.5)',
            display: 'flex',
            alignItems: 'center',
            justifyContent: 'center',
            zIndex: 9999,
          }}
          onClick={(e) => {
            if (e.target === e.currentTarget) setIsOpen(false)
          }}
        >
          <iframe
            src={iframeUrl}
            // Optional: enable passkeys (see /authentication/passkeys)
            allow="publickey-credentials-get *; publickey-credentials-create *"
            style={{
              width: '500px',
              height: '700px',
              border: 'none',
              borderRadius: '12px',
              background: 'white',
              boxShadow: '0 10px 40px rgba(0, 0, 0, 0.3)',
            }}
          />
        </div>
      )}
    </>
  )
}

Mobile native apps — open in a system browser

Why a system browser is required

Which API to use

Whatever stack you're on, it's the same two OS APIs underneath — so the rule never changes: open auth.akedly.io in the framework's system-browser / auth-session API (not its embedded WebView), and read the result from your callback. See Other frameworks below for Capacitor/Ionic, Cordova, .NET MAUI, and the fallback for anything not listed.

Result handling on native

There is no parent window in a system browser, so postMessage does not apply. Instead, set your pipeline's Frontend Callback URL (Pipelines → your pipeline → Callback URLs) to a URL your app intercepts — typically a custom-scheme deep link such as myapp://akedly/callback. When verification completes, the widget redirects the browser to that URL with the usual query parameters (status, transactionId, attemptId, timestamp, and any meta_*); the OS hands the URL back to your app and closes the browser. A custom scheme needs no domain association; an https Universal Link / App Link works too but requires its own OS association (AASA on iOS, Digital Asset Links on Android).

import AuthenticationServices
import UIKit // for the presentationAnchor (UIApplication / UIWindowScene)

final class AkedlyAuth: NSObject, ASWebAuthenticationPresentationContextProviding {
  private var session: ASWebAuthenticationSession?

  /// `iframeUrl` is the URL your backend returned from create-attempt.
  /// `callbackScheme` is your app's custom scheme, e.g. "myapp".
  /// Set your pipeline's Frontend Callback URL to "<scheme>://akedly/callback".
  func start(iframeUrl: URL,
             callbackScheme: String,
             onResult: @escaping (Result<URL, Error>) -> Void) {
    let session = ASWebAuthenticationSession(
      url: iframeUrl,
      callbackURLScheme: callbackScheme
    ) { callbackURL, error in
      if let callbackURL { onResult(.success(callbackURL)) }
      else if let error { onResult(.failure(error)) }
    }
    session.presentationContextProvider = self
    session.prefersEphemeralWebBrowserSession = false // share cookies + passkeys
    self.session = session
    session.start()
  }

  func presentationAnchor(for s: ASWebAuthenticationSession) -> ASPresentationAnchor {
    UIApplication.shared.connectedScenes
      .compactMap { ($0 as? UIWindowScene)?.keyWindow }.first ?? ASPresentationAnchor()
  }
}

// Usage — retain the helper for the session's lifetime. A temporary would be
// deallocated when this function returns, cancelling the flow; store it (e.g. a
// `var akedlyAuth: AkedlyAuth?` property on your view controller):
self.akedlyAuth = AkedlyAuth()
self.akedlyAuth?.start(iframeUrl: iframeUrl, callbackScheme: "myapp") { result in
  switch result {
  case .success(let url):
    let items = URLComponents(url: url, resolvingAgainstBaseURL: false)?.queryItems
    let status = items?.first { $0.name == "status" }?.value // "success" / "failed"
    // read transactionId, attemptId, timestamp, meta_* the same way
  case .failure(let error):
    print("Auth cancelled or failed: \(error)")
  }
}

Step 4: Handle Callbacks

Backend Webhook Payload

If you configure a backendCallbackURL in your pipeline settings, Akedly sends a POST request to your server with complete verification details.

Webhook Timing:

The webhook is sent:

• Immediately after successful verification (OTP verified)
• Immediately after failed verification (invalid OTP, expired, etc.)

Success Webhook Structure:

{
  "status": "success",
  "timestamp": "2025-01-16T12:05:30.123Z",
  "widgetAttempt": {
    "attemptId": "attempt_a1b2c3d4e5f67890",
    "widgetId": "widget_x1y2z3",
    "userId": "67890abcdef12345",
    "status": "verified",
    "verificationAddress": {
      "phoneNumber": "+20****7890",
      "email": "user@example.com"
    },
    "otpConfig": {
      "digits": 6,
      "resendCount": 0
    },
    "createdAt": "2025-01-16T12:00:00.000Z",
    "expiresAt": "2025-01-16T12:05:00.000Z",
    "captchaVerifiedAt": "2025-01-16T12:01:15.500Z",
    "otpRequestedAt": "2025-01-16T12:01:30.200Z",
    "completedAt": "2025-01-16T12:05:30.123Z"
  },
  "transaction": {
    "transactionID": "ae2eacaebe3ed78b105498d5d0cfe54f",
    "status": "Successful",
    "verificationAddress": {
      "phoneNumber": "+201234567890",
      "email": "user@example.com"
    },
    "OTP": "123456",
    "creationDate": "2025-01-16T12:01:25.000Z",
    "expirationDate": "2025-01-16T12:04:25.000Z",
    "updateDate": "2025-01-16T12:05:30.123Z",
    "userID": "67890abcdef12345",
    "pipelineID": "abc123pipeline"
  },
  "transactionReq": {
    "_id": "req_9876543210",
    "status": "Successful",
    "mainTransactionID": "ae2eacaebe3ed78b105498d5d0cfe54f",
    "sentVerification": true,
    "creationDate": "2025-01-16T12:01:30.000Z",
    "expirationDate": "2025-01-16T12:04:30.000Z",
    "sentVerificationDate": "2025-01-16T12:01:31.500Z",
    "inputOTP": "123456",
    "verificationDate": "2025-01-16T12:05:30.123Z"
  },
  "publicMetadata": {
    "userId": "user_12345",
    "orderId": "order_abc789"
  },
  "privateMetadata": {
    "internalUserId": "internal_xyz",
    "sessionToken": "sess_secret_token"
  }
}

Verifying Webhook Signatures

The JSON payload above is what gets signed — verify the signature before parsing the body, on the raw request bytes.

Passkeys

Let returning users verify with the biometric that already unlocks their device — Face ID, Touch ID, Windows Hello, or a screen lock — instead of waiting for an OTP. Passkeys layer directly onto the V2 Widget: same attempt lifecycle, same result contracts, one optional change to your embed.

How passkeys work

Passkeys are woven into the existing widget flow — the user is never stranded on a passkey screen.

1. Captcha. The user passes the standard Cloudflare Turnstile check, exactly as today.
2. Returning user with a passkey on this device. If the bound phone already has a passkey on this device, the widget offers an optional "Use passkey" button. "Use a code instead" is always shown alongside it.
3. Everyone else goes straight to normal OTP — no extra screens.
4. Success is identical to OTP — same redirect, same signed webhook, same postMessage. A passkey success may add verificationMethod: "passkey".
5. After an OTP success, the widget may show an optional, skippable "Enable passkey" prompt so the next verification is instant.

What to add per surface

What you change depends only on how you embed the widget. There are no new API routes, parameters, or SDK upgrades — the widget runs the passkey ceremonies itself.

allow="publickey-credentials-get *; publickey-credentials-create *"

<!-- Before -->
<iframe src="https://auth.akedly.io/auth?attemptId=..."></iframe>

<!-- After -->
<iframe
  src="https://auth.akedly.io/auth?attemptId=..."
  allow="publickey-credentials-get *; publickey-credentials-create *"
></iframe>

allow="publickey-credentials-get https://auth.akedly.io; publickey-credentials-create https://auth.akedly.io"

Enabling passkeys for your account

Passkeys appear only when both of these are true:

Add the allow attribute now and passkeys light up the moment your account is enabled — no further code changes.

Debugging tips

Security Features

V2.0 Widgets include enterprise-grade security features at no additional cost. Our multi-layered approach combines visible and invisible protection mechanisms.

Error Reference

{
  "status": "error",
  "code": "ERROR_CODE",
  "message": "Human-readable description",
  "retryable": true, // Optional: whether user can retry
  "retryAfter": "ISO8601", // Optional: when to retry (for rate limits)
  "cooldownSeconds": 60, // Optional: seconds until retry allowed
  "details": {} // Optional: additional context
}

HTTP Status Codes

Authentication & Security Errors

Rate Limiting Errors

All rate limit errors include retryAfter (ISO8601 timestamp) and cooldownSeconds (integer).

Circuit Breaker Errors

Billing Errors

External Service Errors

Advanced Features

Bring Your Own OTP

If you want to generate your own OTP codes, pass a custom otp parameter:

const response = await axios.post(
  'https://api.akedly.io/api/v1/widget-sdk/create-attempt',
  {
    apiKey: AKEDLY_API_KEY,
    publicKey: WIDGET_PUBLIC_KEY,
    signature,
    timestamp,
    verificationAddress: { phoneNumber: '+201234567890' },
    otp: '123456', // Your custom OTP (4, 5 or 6 digits)
  },
)

Troubleshooting

INVALID_SIGNATURE Error

Common causes:

• Incorrect HMAC algorithm (must be SHA256)
• Wrong JSON key order in signature message
• Extra spaces in JSON string
• Widget secret is incorrect
• Timestamp is stale (>5 minutes old)

Solutions:

• Verify you're using HMAC-SHA256
• Ensure message format is JSON.stringify({ apiKey, publicKey, timestamp, phoneNumber })
• Check your widget secret matches the dashboard
• Synchronize server clock with NTP

Iframe Shows Blank Screen

Common causes:

• Invalid or malformed attemptId in URL
• Attempt has expired (5-minute lifetime)
• Parent page not served over HTTPS
• Browser blocking mixed content

Solutions:

• Check browser console for errors
• Verify iframeUrl contains a valid attemptId
• Ensure parent page uses HTTPS in production
• Confirm attempt hasn't expired

PIPELINE_NOT_CONFIGURED Error

Solution:

• Go to Dashboard → Widgets → [Your Widget]
• Edit widget settings
• Select a pipeline from the dropdown
• Save changes

OTP Not Received

Common causes:

• Phone number format is incorrect
• Rate limit exceeded for phone number
• Pipeline verification methods not configured

Solutions:

• Ensure phone number uses E.164 format with country code (e.g., +201234567890)
• Check rate limit status in dashboard analytics
• Verify pipeline has at least one verification method enabled

Support & Resources

Getting Help

• Dashboard: https://app.akedly.io
• Support: support@akedly.io
• Co-founders: muhad@akedly.io, hana@akedly.io

Additional Resources

• Quickstart Guide
• V1.2 REST API
• Passkeys Guide

Version: 2.0.0 Last Updated: January 11th, 2026 API Base URL: https://api.akedly.io/api/v1/widget-sdk
