Utility Webhooks

What happens after a send

New to webhooks entirely? Start at Webhooks — it covers what they are, how to receive one, and how the three Akedly webhook systems differ. This page assumes that and goes straight to the utility payloads.

One WhatsApp send produces a stream of events. These are the per-send events; one more, template.status_changed, is not tied to a send and follows the table. None of the rows below fire for a direct BYO-SMS leg: Akedly does not ingest delivery receipts from a BYO provider — there is no route that accepts one — and replies and button taps are WhatsApp features, so that SMS leg produces no message.status, no message.inbound and no button event. A WhatsApp attempt that later falls back to BYO SMS can still emit its own message.status failure; the fallback SMS leg emits no event. See The four events below for the per-channel detail.

Separately from any send, Meta approves or rejects one of your templates → template.status_changed. It fires once per accepted Meta APPROVED or REJECTED transition on a matched customer-owned Utilities template. It goes to every eligible direct HTTPS callback URL on that account, not to the pipeline of a particular send, and it carries a one-use token for fetching the template's full details. Other Meta statuses and HTTP callback URLs receive no template status event. See The four events.

Two kinds of event, and which are forwarded

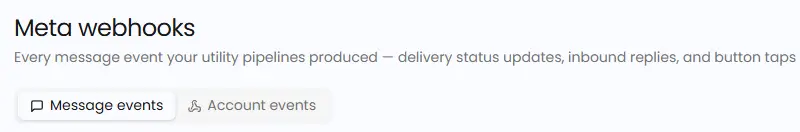

Meta sends Akedly two different families of webhook, and the dashboard splits them exactly that way under Channels → Monitoring → Meta webhooks:

View larger

Point Akedly at your endpoint

Webhooks are configured per pipeline. You need two things on the utility pipeline: the URL to POST to, and the signing secret used to prove the request is ours.

Use a direct HTTPS URL. template.status_changed is sent only to HTTPS callback URLs, and Akedly does not follow a redirect for it.

Write the handler

Verify the request, acknowledge it quickly, and queue every verified attempt with its signed svix-timestamp. In the queue worker, retain the token from the newest verified attempt before deduplicating business work:

import express from 'express'
import { Webhook } from 'svix'

const app = express()
const wh = new Webhook(process.env.AKEDLY_WEBHOOK_SECRET) // whsec_...

// Verification needs the RAW body — parsing to JSON first breaks the signature.
app.post('/akedly/webhooks', express.raw({ type: 'application/json' }), (req, res) => {
  let event
  try {
    // 1. Verify. Throws if the signature or timestamp doesn't check out.
    event = wh.verify(req.body, {
      'svix-id': req.headers['svix-id'],
      'svix-timestamp': req.headers['svix-timestamp'],
      'svix-signature': req.headers['svix-signature'],
    })
  } catch {
    return res.sendStatus(400) // Not from us. Do not process.
  }

  // 2. Acknowledge immediately — before doing any real work.
  res.sendStatus(200)

  // 3. Queue every verified attempt with its verified, signed attempt timestamp.
  queue.push({ event, svixTimestamp: req.headers['svix-timestamp'] })
})

The envelope

Every event shares one outer shell. Only data changes between event types:

{
  "eventId": "evt_9f2c1b7a4e5d6f8a0b1c2d3e4f5a6b7c",
  "eventType": "message.status",
  "eventVersion": "1",
  "pipelineId": "68f1c2...",
  "timestamp": "2026-07-23T12:34:56Z",
  "data": { }
}

The outer shell is fixed by the webhook contract: event-specific fields live inside data, not at the top level.

The four events

message.status

A WhatsApp delivery transition.

{
  "transactionId": "68f1c2...",
  "wamid": "wamid.HBgLMjAx...",
  "smsMessageId": null,
  "templateId": "68e9a1...",
  "phoneNumber": "+201234567890",
  "status": "delivered",
  "failureCode": null,
  "failureReason": null,
  "channel": "whatsapp",
  "statusTimestamp": "2026-07-23T12:34:56Z"
}

wamid is Meta's message ID. The current customer utility status path is WhatsApp-only, so smsMessageId is null here; a direct BYO-SMS leg emits no message.status event. A WhatsApp attempt that later falls back to BYO SMS can still emit its own failed status, but that status describes the WhatsApp attempt and does not by itself mean the overall request is terminal. The fallback SMS leg emits no event. failureCode and failureReason are populated only when status is failed.

message.inbound

A free-text reply on WhatsApp.

{
  "wamid": "wamid.HBgLMjAx...",
  "contextWamid": null,
  "transactionId": null,
  "templateId": null,
  "phoneNumber": "+201234567890",
  "messageBody": "is my order shipped?",
  "receivedAt": "2026-07-23T12:35:10Z",
  "sourceKnown": false
}

messageBody is UTF-8 and may be Arabic — pass it through without transformation. receivedAt is Meta's timestamp. The null transactionId here is not a bug; see the next section.

button.action

A quick-reply button tap.

{
  "wamid": "wamid.HBgLMjAx...",
  "contextWamid": "wamid.HBgLMjAy...",
  "transactionId": "68f1c2...",
  "templateId": "68e9a1...",
  "phoneNumber": "+201234567890",
  "buttonId": "confirm_delivery",
  "buttonLabel": "Confirm delivery",
  "buttonPayload": "Yes, received",
  "tappedAt": "2026-07-23T12:36:02Z",
  "sourceKnown": true
}

template.status_changed

Meta approved or rejected a matched customer-owned Utilities template. This is Meta's status (the second of the two approval tracks), not Akedly's review status, and not on its own whether the template is sendable. Akedly sends it only for APPROVED and REJECTED; PENDING, PAUSED, DISABLED and any other Meta status produce no event.

{
  "source": "meta",
  "templateId": "68e9a1...",
  "metaTemplateId": "1249873516203348",
  "name": "order_shipped",
  "language": "en",
  "previousStatus": "PENDING",
  "status": "APPROVED",
  "reason": null,
  "statusTimestamp": "2026-07-23T12:33:20Z",
  "details": {
    "method": "GET",
    "path": "/api/v1/utilities/templates/details",
    "token": "<fresh opaque token>"
  }
}

This event is delivered on its own schedule, not the message-event one — see Delivery, retries and failure.

Fetch template details

Exchange the details.token from a template.status_changed webhook for the template's full, customer-safe details: body, header, footer, buttons, variables with examples, channels, both statuses, category and Meta's submission error. The response shows the template as it is when the GET succeeds, not a snapshot from the status change. The bearer token is the only credential: no API key, request signing or customer session is needed.

// Run from your queue worker straight after acknowledging the webhook.
async function handleTemplateStatus({ event, svixTimestamp }) {
  if (event.eventType !== 'template.status_changed') return

  await saveTokenIfNewer({
    eventId: event.eventId,
    token: event.data.details.token,
    signedSvixTimestamp: Number(svixTimestamp),
  }) // One atomic DB update keyed by eventId; compare signed timestamps. Write only if incoming > persisted. Tie/older: no-op.
  if (await businessEventAlreadyProcessed(event.eventId)) return

  const token = await latestTemplateDetailsToken(event.eventId)
  const fetchDetails = (bearerToken) => fetch('https://api.akedly.io/api/v1/utilities/templates/details', {
    headers: { Authorization: `Bearer ${bearerToken}` },
  })
  let res = await fetchDetails(token)
  if (res.status === 404) {
    const newerToken = await latestTemplateDetailsToken(event.eventId)
    if (newerToken && newerToken !== token) {
      res = await fetchDetails(newerToken) // one retry only, with a different token
    }
  }
  if (res.status === 503) throw new Error('template details index not ready') // safe; retry the job promptly so it rereads the current token
  if (res.status === 429) {
    const error = new Error('template details rate limited')
    error.retryAfter = res.headers.get('Retry-After')
    throw error // configure the queue to reschedule this job after error.retryAfter
  }
  if (res.status === 404) return // no different token, or the one retry also failed; check saved details before manual recovery
  if (res.status >= 500) throw new Error(`template details: ${res.status}`) // retry promptly; the token may expire
  if (!res.ok) throw new Error(`template details: ${res.status}`)

  const { data: template } = await res.json()
  await saveTemplate(template) // includes whatsappSubmitError and Akedly's separate rejectionReason
}

{
  "status": "success",
  "data": {
    "_id": "68e9a1...",
    "name": "order_shipped",
    "language": "en",
    "body": "Your order {{order_id}} has shipped.",
    "header": { "text": "Order update" },
    "footer": "Reply if you need help.",
    "buttons": [
      { "type": "URL", "text": "Track order", "url": "https://shop.example/orders/{{order_id}}" }
    ],
    "variables": [
      { "name": "order_id", "example": "A10482" }
    ],
    "usableOn": { "sms": true, "whatsapp": true },
    "parameterFormat": "NAMED",
    "akedlyStatus": "approved",
    "metaStatus": "APPROVED",
    "metaCategory": "UTILITY",
    "suggestedCategory": null,
    "whatsappSubmitError": null,
    "whatsappResubmittable": false,
    "rejectionReason": null,
    "sourceLibraryName": null,
    "createdAt": "2026-07-18T09:11:22.000Z",
    "updatedAt": "2026-07-23T12:33:20.000Z"
  }
}

{
  "status": "error",
  "code": "DETAIL_TOKEN_INVALID",
  "message": "The template detail token is invalid or expired"
}

Responses are sent with Cache-Control: no-store, private. Do not cache them in a shared proxy.

Which send does a reply belong to

When someone replies you usually want to know what they are replying to. WhatsApp only tells us that when the user explicitly replied to a specific message, so Akedly reports honestly rather than guessing. Both inbound events carry sourceKnown:

Why we don't guess. Attribution comes strictly from Meta's context.id. The tempting fallback — "attribute it to the most recent send to this number" — quietly breaks: a customer replying three days later gets stitched onto an unrelated template, and you cannot distinguish a correct attribution from a wrong one afterwards. An honest null is more useful than a plausible lie. If a heuristic works at your volume, apply it in your own handler where you know the trade-off.

Where unattributed replies are delivered. A WhatsApp thread belongs to a phone number, not a pipeline, so an unattributed inbound is account-scoped. Akedly resolves the account from the receiving WhatsApp Business Account and delivers to its utility pipelines that have a webhook URL, deduplicated by destination URL — if several pipelines share one backend you receive a single delivery, and the envelope's pipelineId is whichever pipeline signed it.

What buttons can and cannot tell you

Only quick-reply buttons reach your backend:

Stable ids instead of display text. A quick-reply button can carry an action label you set when authoring the template, so your handler switches on an id that survives a copy rewrite or a translation. Meta only echoes the button's text reliably, so Akedly matches that text against the stored template locally and substitutes your configured actionId and actionLabel. Up to three buttons per template may carry one.

When nothing matches — an unattributed tap, a reworded button, or one with no label configured — the event still fires, falling back to Meta's raw text and payload. Enrichment never costs you the event, so write your handler to tolerate the fallback:

const action = event.data.buttonId ?? event.data.buttonPayload

Delivery, retries and failure

Akedly POSTs the event and waits up to 10 seconds. Any 2xx means delivered. Any other status, a timeout, or a connection error counts as a failed attempt and triggers a retry.

Two schedules apply. The three message events retry quickly, in the process that sent them; template.status_changed is staged durably and retried for about a day by a background worker.

Message events: five attempts in about two and a half minutes

Template status: seven attempts over about a day

A template.status_changed delivery is written to storage first and picked up by a worker that runs about once a minute, so the first POST normally lands within about a minute after Akedly accepts and stages the transition, subject to the worker backlog, and the schedule survives a restart. If an attempt fails, the rest follow this schedule:

Return 2xx the moment the signature checks out, even if downstream processing later fails. A non-2xx triggers a retry; a 2xx normally stops later attempts, though at-least-once delivery means a duplicate can still arrive.

Verifying it came from Akedly

Your endpoint is on the public internet, so anyone who learns the URL can POST something shaped like a real event. Every utility webhook therefore carries three headers:

The signed value is the first two headers joined to the raw body with full stops:

svix-id . svix-timestamp . raw request body

That string is hashed with HMAC-SHA256 keyed on your whsec_ secret, base64-decoded after stripping the prefix. This is the Standard Webhooks scheme, so any official Svix library does it in one call — as in the handler above.

This is the same scheme, and the same whsec_ secret, that signs V2 widget webhooks — so verification code written for one works for the other unchanged. Ready-made verifiers in Node, Python, PHP, Go and Ruby are on the Authentication webhooks page; they are kept in one place rather than copied here so the two cannot drift apart.

Try it hands-on

Pick one of the four events to see its real payload, generate a live signature with a demo secret, and watch what happens when your server stops answering, on either retry schedule. Everything below runs in your browser; nothing you type is sent anywhere.

{
  "eventId": "evt_9c1f4b7ea2d84306b5e07c19af3d6b28",
  "eventType": "message.status",
  "eventVersion": "1",
  "pipelineId": "6a4b6596d3653633b086117b",
  "timestamp": "2026-08-04T09:12:41.000Z",
  "data": {
    "transactionId": "8bc469dd1e06d2b711892d95648c90a8",
    "wamid": "wamid.HBgMMjAxMjM0NTY3ODkwFQIAERgSMTUwN0VF",
    "smsMessageId": null,
    "templateId": "6a5d588964b5bec0107f1568",
    "phoneNumber": "+201234567890",
    "status": "delivered",
    "failureCode": null,
    "failureReason": null,
    "channel": "whatsapp",
    "statusTimestamp": "2026-08-04T09:12:41.000Z"
  }
}

Test and debug

Each delivery/event is recorded per pipeline with a cumulative attempt count, its latest status, the last HTTP status code we saw, and the last error. This is a delivery summary, not a per-attempt history, and it is the first place to look when an event did not arrive. Template status deliveries are listed with the message events, under the pipeline that represents the callback URL. If that representative pipeline is deleted, its delivery row is no longer reachable through that pipeline's history.

Reading it:

• No row for a template change: template.status_changed is recorded only for a Meta APPROVED or REJECTED change sent to a direct HTTPS callback URL. Other Meta statuses and HTTP callback URLs produce no delivery row. Check the template's Meta status in Utilities → Templates and the scheme of the pipeline's callback URL.
• Template callback returns a redirect (3xx): Akedly does not follow redirects. Each redirect response fails that attempt and is retried; the delivery stays pending until the retry schedule ends. If the final attempt also redirects, it is marked failed with Request failed with status code 307 in lastError (or the matching 3xx status). Point the callback URL straight at the final HTTPS endpoint.
• failed with a 4xx — we reached you and you rejected it. A 400 usually means signature verification failed: check you are verifying the raw body, not a re-serialised JSON object.
• failed with a 5xx — your handler threw. Look for work happening before the acknowledgement.
• failed with no status code — we never got a response. An unreachable host, TLS failure, or a request slower than the 10-second timeout causes this. For template.status_changed, token issuance or persistence can also fail before an attempt's POST; that attempt does not reach your endpoint, although earlier attempts may have. In that case, lastError can be Unable to issue template detail token or Utility template detail token persistence failed.
• failed with destination changed — a template.status_changed delivery whose representative pipeline was deleted, became ineligible, had its owner changed, or got a new callback URL before the next attempt, including between retries. The old URL may have been called on prior attempts, but it is not called again, and the new one only receives future changes.
• delivered but nothing happened on your side — you acknowledged and then dropped it. Check your dedupe store isn't discarding first-time eventIds.
