Webhooks

What is a webhook?

Normally you call us: you send a request, we send a response. A webhook is the other direction — something happens on our side, and we call you.

The alternative is polling: asking us "has it delivered yet?" every few seconds. That is slow and wasteful. With a webhook you find out the moment it happens.

In practice a webhook is just an HTTP POST to a URL you own. If you can handle a form submission, you can handle a webhook:

app.post('/webhooks/akedly', (req, res) => {
  res.sendStatus(200)   // 1. say "got it" immediately
  handle(req.body)      // 2. then do your work
})

Webhooks by API version

Every pipeline has one webhook URL — the Logging Webhook URL (backendCallbackURL) in its Webhooks section. What arrives at that URL depends on the API version the pipeline uses. Find your version, and you know every webhook you will get.

Test-mode transactions (isTest: true) still get their verification result but never produce otp.channels.* events. Nothing is sent when the pipeline has no webhook URL. TOTP (authenticator-app) pipelines have their own unsigned, single-attempt callback and are not covered on this page.

Telling them apart on one URL

All of these arrive at the same URL, so route on the shape of the body before you do anything else:

app.post('/webhooks/akedly', express.raw({ type: 'application/json' }), (req, res) => {
  let body
  try {
    body = JSON.parse(req.body)
  } catch {
    return res.sendStatus(400)
  }

  if (body.eventType?.startsWith('otp.channels.')) {
    // V1 / V1.2 channel event — always signed: verify before you accept it
    if (!verifyAkedlySignature(req)) return res.sendStatus(401)
    res.sendStatus(200)
    return handleChannelEvent(body.data)
  }
  const signed = Boolean(req.headers['svix-signature'])
  if (signed && !verifyAkedlySignature(req)) return res.sendStatus(401)
  res.sendStatus(200)
  if (body.widgetAttempt) {
    // V2 Widget verification result — normally signed
    // An unsigned result cannot be verified. confirmThenHandleWidgetResult uses only
    // widgetAttempt.attemptId from it: it runs an authenticated transaction status lookup
    // and acts on the lookup's data, never on this body
    return signed ? handleWidgetResult(body) : confirmThenHandleWidgetResult(body)
  }
  if (body.mainTransaction) {
    // V1.2 verification result — normally signed; V1 — never signed
    // An unsigned result cannot be verified. confirmThenHandleRestResult uses only
    // mainTransaction.transactionID from it: it runs an authenticated transaction status
    // lookup and acts on the lookup's data, never on this body
    return signed ? handleRestResult(body) : confirmThenHandleRestResult(body)
  }
})

verifyAkedlySignature(req) wraps the wh.verify(req.body, req.headers) call from Verify in your stack and returns false when it throws. A signed request is checked before you answer 200, so a forged signed request is never acknowledged. Unsigned results are acknowledged straight away but only acted on once the API confirms them. To confirm a result that is late or unsigned, use a transaction status lookup and act on the lookup's data, not on the unsigned body.

A retry can deliver something you already processed, so make your handler idempotent. Key on eventId for channel events. For verification results, key on fields in the body, which never change between attempts: widgetAttempt.attemptId + status + timestamp on V2, and mainTransaction.transactionID + mainTransaction.status + transactionReq.verificationDate on V1 and V1.2. The svix-id header is a fast path for signed retries of the same delivery, but not a complete key — a result that goes out unsigned, or through the rare single-send fallback, has no svix-id or a different one. See Retries. A status lookup is not a webhook copy and carries no svix-id; see Using lookups with webhooks.

Retries

Verification results — V1, V1.2 and V2 — are saved before they are sent, so a restart on our side does not lose them.

• What counts as a failure: no answer within 10 seconds, a connection error, or a final reply that is not 2xx (a 4xx or 5xx is retried the same way).
• Schedule: the first attempt goes out immediately. After a failure, the next attempt waits 1 minute, then 5 minutes, 30 minutes, 2 hours and 6 hours. That is six attempts over about 8½ hours. A retry normally starts within a minute of becoming due, later if we are catching up on a backlog.
• After the sixth failure we stop. Nothing more is sent for that result.
• The body never changes between attempts. It is the same bytes, including the original timestamp. On signed V2 Widget and V1.2 results the svix-id header is also the same on every attempt; only svix-timestamp and svix-signature are fresh.
• One success webhook per attempt. A V2 attempt sends at most one success result. Each wrong code sends its own failed result, and each one is retried on its own.
• Results can arrive out of order. A failed result that has not been delivered yet is dropped once the same attempt (V2) or transaction (V1/V1.2) succeeds, but one already in flight can still land after the success. Once you have recorded a success for a widgetAttempt.attemptId or mainTransaction.transactionID, never let a later failed / Failed or pending / Pending result for the same id undo it on your record, whether it arrives by webhook or in a status lookup.
• Changing or clearing the URL cancels pending retries. A retry is only sent to the URL the result was first sent to. If the pipeline's webhook URL has changed or been removed since, the retry is dropped instead of going to the old address.
• Your URL must answer directly. Point the pipeline at the final address. A redirect (for example http to https, or a missing trailing slash) can turn the POST into a GET and lose the body.

If we cannot save a result because of a fault on our side, we still send it once, without retries. Retries make delivery much more likely but do not guarantee it, and there is no delivery history for verification results in the dashboard yet. Do not make the webhook your only record of a verification — confirm anything that matters from the API, for example with a transaction status lookup, and act on its data, not on an unsigned body.

Where is the delivery channel?

Short answer: on every OTP webhook, in the same place for the same API version.

• Values are lowercase: whatsapp, sms, telegram, email. We never tell you which SMS provider carried the message — only that it was sms.
• resolvedChannel is the single channel the code ended up on. If WhatsApp failed and the code fell back to SMS, it says sms.
• channels lists every channel the code was sent on. It can hold more than one (for example WhatsApp and Telegram together). Treat it as a set; the order means nothing.
• The verification result is a snapshot taken when the user's code is checked. By then any WhatsApp fallback has normally already happened.
• No update means no change. otp.channels.updated is sent only when WhatsApp fails after sending. If WhatsApp succeeds, the otp.channels.resolved event you already have is final.
• V2 has no channel events. For V2, the verification result is the only webhook that carries the channel. On V1 and V1.2, the channel events tell you as soon as the code goes out, before the user types anything.
• V1 without waitForChannels does not wait for the provider to confirm, so channels can include a channel that was attempted but not yet confirmed.

Verification result payloads

The verification result is the webhook every OTP pipeline receives. V2 and V1/V1.2 carry the same transaction record under different names — transaction on V2, mainTransaction on V1/V1.2.

{
  "status": "success",
  "timestamp": "2026-10-01T12:00:42.150Z",
  "widgetAttempt": {
    "attemptId": "attempt_a1b2c3d4e5f67890",
    "widgetId": "widget_x1y2z3",
    "userId": "6821bb199f9cfd6b2754e6ef",
    "status": "verified",
    "isTest": false,
    "verificationAddress": {
      "phoneNumber": "+201****7890",
      "email": null
    },
    "otpConfig": {
      "digits": 6,
      "resendCount": 0
    },
    "publicMetadata": {
      "orderId": "order_abc789"
    },
    "createdAt": "2026-10-01T11:59:40.000Z",
    "expiresAt": "2026-10-01T12:04:40.000Z",
    "captchaVerifiedAt": "2026-10-01T11:59:52.500Z",
    "otpRequestedAt": "2026-10-01T11:59:59.800Z",
    "completedAt": "2026-10-01T12:00:42.120Z"
  },
  "transaction": {
    "transactionID": "ae2eacaebe3ed78b105498d5d0cfe54f11b4130a0847d67b36927752148679e5",
    "status": "Successful",
    "verificationAddress": {
      "phoneNumber": "+201234567890"
    },
    "OTP": "123456",
    "resolvedChannel": "whatsapp",
    "channels": [
      "whatsapp"
    ],
    "isTest": false,
    "userID": "6821bb199f9cfd6b2754e6ef",
    "pipelineID": "6821bba09f9cfd6b2754e752",
    "creationDate": "2026-10-01T12:00:00.000Z",
    "expirationDate": "2026-10-01T12:03:00.000Z",
    "updateDate": "2026-10-01T12:00:42.120Z"
  },
  "transactionReq": {
    "_id": "6a1f0c2f9d1b4a0012345679",
    "mainTransactionID": "ae2eacaebe3ed78b105498d5d0cfe54f11b4130a0847d67b36927752148679e5",
    "status": "Successful",
    "isTest": false,
    "channels": [
      "whatsapp"
    ],
    "sentVerificationDate": "2026-10-01T12:00:01.200Z",
    "inputOTP": "123456",
    "verificationDate": "2026-10-01T12:00:42.120Z",
    "creationDate": "2026-10-01T12:00:00.300Z",
    "expirationDate": "2026-10-01T12:03:00.300Z"
  },
  "publicMetadata": {
    "orderId": "order_abc789"
  },
  "privateMetadata": {
    "internalUserId": "internal_xyz"
  }
}

{
  "status": "failed",
  "timestamp": "2026-10-01T12:00:42.150Z",
  "widgetAttempt": {
    "attemptId": "attempt_a1b2c3d4e5f67890",
    "widgetId": "widget_x1y2z3",
    "userId": "6821bb199f9cfd6b2754e6ef",
    "status": "otp_requested",
    "isTest": false,
    "verificationAddress": {
      "phoneNumber": "+201****7890",
      "email": null
    },
    "otpConfig": {
      "digits": 6,
      "resendCount": 0
    },
    "publicMetadata": {
      "orderId": "order_abc789"
    },
    "createdAt": "2026-10-01T11:59:40.000Z",
    "expiresAt": "2026-10-01T12:04:40.000Z",
    "captchaVerifiedAt": "2026-10-01T11:59:52.500Z",
    "otpRequestedAt": "2026-10-01T11:59:59.800Z",
    "completedAt": null
  },
  "transaction": {
    "transactionID": "ae2eacaebe3ed78b105498d5d0cfe54f11b4130a0847d67b36927752148679e5",
    "status": "Pending",
    "verificationAddress": {
      "phoneNumber": "+201234567890"
    },
    "OTP": "123456",
    "resolvedChannel": "sms",
    "channels": [
      "sms"
    ],
    "isTest": false,
    "userID": "6821bb199f9cfd6b2754e6ef",
    "pipelineID": "6821bba09f9cfd6b2754e752",
    "creationDate": "2026-10-01T12:00:00.000Z",
    "expirationDate": "2026-10-01T12:03:00.000Z",
    "updateDate": "2026-10-01T12:00:42.120Z"
  },
  "transactionReq": {
    "_id": "6a1f0c2f9d1b4a0012345679",
    "mainTransactionID": "ae2eacaebe3ed78b105498d5d0cfe54f11b4130a0847d67b36927752148679e5",
    "status": "Pending",
    "isTest": false,
    "channels": [
      "sms"
    ],
    "sentVerificationDate": "2026-10-01T12:00:01.200Z",
    "creationDate": "2026-10-01T12:00:00.300Z",
    "expirationDate": "2026-10-01T12:03:00.300Z"
  },
  "publicMetadata": {
    "orderId": "order_abc789"
  },
  "privateMetadata": {
    "internalUserId": "internal_xyz"
  },
  "error": {
    "code": "INVALID_OTP",
    "message": "Invalid OTP"
  }
}

{
  "mainTransaction": {
    "transactionID": "ae2eacaebe3ed78b105498d5d0cfe54f11b4130a0847d67b36927752148679e5",
    "status": "Successful",
    "verificationAddress": {
      "phoneNumber": "+201234567890"
    },
    "OTP": "123456",
    "resolvedChannel": "whatsapp",
    "channels": [
      "whatsapp"
    ],
    "isTest": false,
    "userID": "6821bb199f9cfd6b2754e6ef",
    "pipelineID": "6821bba09f9cfd6b2754e752",
    "creationDate": "2026-10-01T12:00:00.000Z",
    "expirationDate": "2026-10-01T12:03:00.000Z",
    "updateDate": "2026-10-01T12:00:42.120Z"
  },
  "transactionReq": {
    "_id": "6a1f0c2f9d1b4a0012345679",
    "mainTransactionID": "ae2eacaebe3ed78b105498d5d0cfe54f11b4130a0847d67b36927752148679e5",
    "status": "Successful",
    "isTest": false,
    "channels": [
      "whatsapp"
    ],
    "sentVerificationDate": "2026-10-01T12:00:01.200Z",
    "inputOTP": "123456",
    "verificationDate": "2026-10-01T12:00:42.120Z",
    "creationDate": "2026-10-01T12:00:00.300Z",
    "expirationDate": "2026-10-01T12:03:00.300Z"
  }
}

The transaction record

transaction (V2) and mainTransaction (V1/V1.2) hold the same fields.

The send record

transactionReq describes the send the user answered. A transaction can have several — one per resend.

V2-only fields

These are the only fields we send on these two objects. If we add one later it will be listed here first, so ignore any field you do not recognise rather than failing on it.

OTP channel events

Eligible OTP transactions can produce a second callback stream on the pipeline's Logging Webhook URL (backendCallbackURL). The same URL receives both the OTP verification-result callback and these signed channel events. Route channel events by the top-level eventType (otp.channels.resolved or otp.channels.updated) and verify the raw body before accepting them. Route results by the mainTransaction object. V1.2 results are normally signed too, so verify them the same way; V1 results are unsigned, so do not reject a result just because the svix-* headers are absent.

Only V1.2 transactions always qualify. A V1 transaction qualifies when its request uses waitForChannels: true. V1 requests without that option, V2 Widget transactions, and transactions with isTest: true do not emit these events. Akedly emits nothing when the pipeline has no Logging Webhook URL.

The first event is otp.channels.resolved. It is sent after activation's channel wait, which has a maximum of five seconds, and after the channel array is persisted. A later WhatsApp provider failure can produce otp.channels.updated after the failed delivery has been reconciled and the new channel array has been persisted. That update can contain an empty channels array when no fallback channel is available.

channels belongs to the TransactionReq identified by transactionReqID. It is a unique array of lowercase enum values: whatsapp, sms, telegram, and email. Treat it as a set; array order is not semantic. The initial event can therefore include WhatsApp while its provider result is still pending at the five-second limit. Each event is saved and delivered on its own, so an update can reach you before the initial event. For the same transaction request, otp.channels.updated supersedes otp.channels.resolved regardless of arrival order.

{
  "eventId": "evt_7f2a1d4c9e8b6a50123456789abcdeff",
  "eventType": "otp.channels.resolved",
  "eventVersion": "1",
  "pipelineId": "67d1b8d2f4a10c2b6e8f9a31",
  "timestamp": "2026-09-20T12:00:00.000Z",
  "data": {
    "transactionID": "67d1b8d2f4a10c2b6e8f9a31c1d7e4b6a2f9c0d8e5b3a1f6c4d2e8b7a5c3d9e0",
    "transactionReqID": "66edc0f2a7f9c1d2e3f4a5b6",
    "apiVersion": "v1.2",
    "channels": ["sms"],
    "reason": "activation"
  }
}

Here is the same request after WhatsApp fails without a fallback:

{
  "eventId": "evt_4c91e8b27a6d503f1e2c9b7a8d6f4051",
  "eventType": "otp.channels.updated",
  "eventVersion": "1",
  "pipelineId": "67d1b8d2f4a10c2b6e8f9a31",
  "timestamp": "2026-09-20T12:00:08.000Z",
  "data": {
    "transactionID": "67d1b8d2f4a10c2b6e8f9a31c1d7e4b6a2f9c0d8e5b3a1f6c4d2e8b7a5c3d9e0",
    "transactionReqID": "66edc0f2a7f9c1d2e3f4a5b6",
    "apiVersion": "v1.2",
    "channels": [],
    "reason": "whatsapp_failure"
  }
}

The update uses the same envelope and data fields, with eventType: "otp.channels.updated". Its reason is "whatsapp_fallback" when a replacement channel was persisted, or "whatsapp_failure" when the WhatsApp failure left no fallback channel. Akedly deduplicates updates by provider message ID plus its settled resolution, so a duplicate notification for the same provider message and outcome does not create another logical update. The initial event is admitted at most once per TransactionReq; an update is admitted only after that initial dispatch claim exists.

eventId and svix-id both stay the same across delivery retries of one event; svix-timestamp and svix-signature are fresh on each attempt. Verify the svix-id, svix-timestamp, and svix-signature headers before processing the body, acknowledge quickly, and deduplicate by eventId rather than by transaction ID alone.

Each event is saved before it is sent, so a restart on our side does not lose it. If a POST fails, the next attempt becomes due after 1 second, 5 seconds, 25 seconds, then 125 seconds, and a background job picks it up within a minute of becoming due. The fifth total attempt is the last; after it fails, the delivery is marked failed and nothing more is sent.

Setting up your endpoint

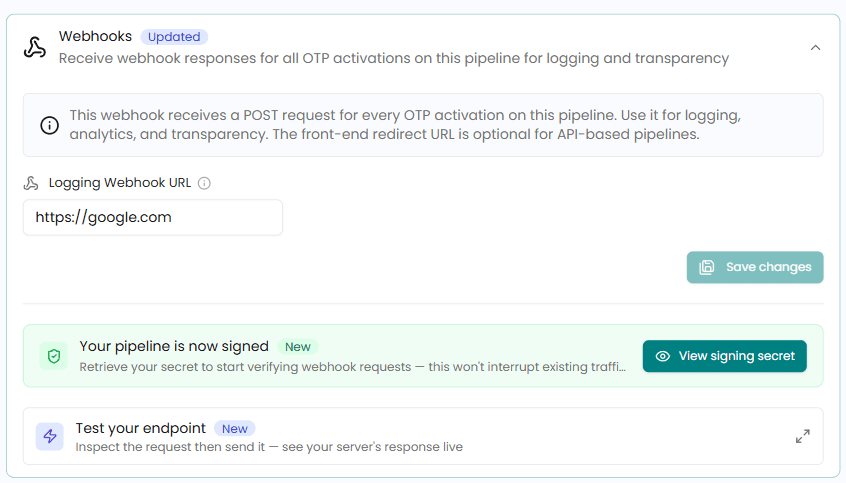

Your webhook URL lives on the pipeline, in its Webhooks section. Paste a URL, save, and we start sending. Leave it empty and we send nothing.

The same section holds your signing secret — the value you need to prove a message came from us.

Note:

Use HTTPS even though HTTP is accepted

The dashboard asks for an HTTPS endpoint, and a plain http:// URL is in fact accepted too. Send them over HTTPS anyway: webhook bodies carry personal data, and on the OTP API the verification code itself. The Utilities template.status_changed event is stricter: Meta approvals and rejections go only to direct HTTPS callback URLs.

View larger

Try it before you have traffic

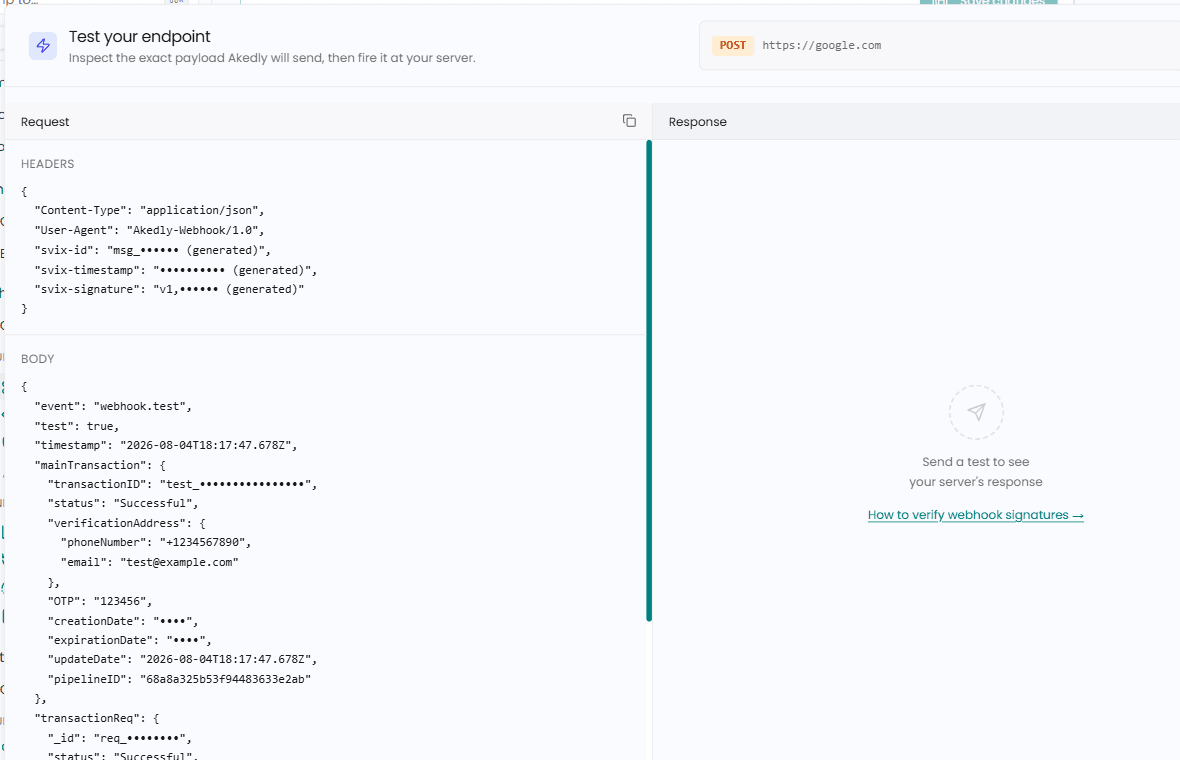

The dashboard can fire a sample webhook at your URL and show you exactly what your server replied — useful long before any real traffic exists.

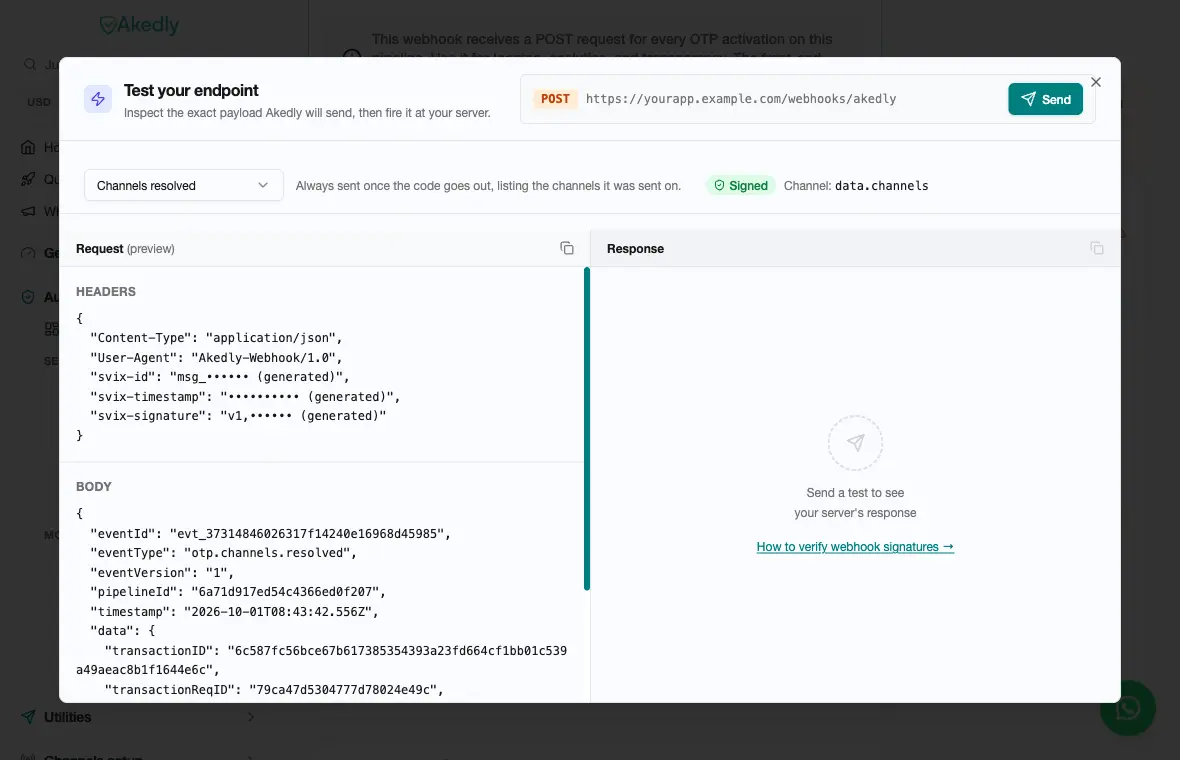

Open Test your endpoint in the Webhooks section:

1. Pick the webhook. V1 and V1.2 pipelines can test the verification result and both channel events. V2 pipelines test the verification result. Utility pipelines test message.status.
2. Check the request. The panel shows the headers and body, whether the webhook is signed, and which field holds the channel.
3. Press Send. The response panel shows your server's live answer, and the request panel switches to the exact request that was sent.

The sample is built by the same code that builds real webhooks, with sample values, and is signed exactly when the real one would be.

Note:

How to recognise a test

A verification-result test starts with "event": "webhook.test" and "test": true — real verification results never contain those two fields. Channel-event and utility tests are exact real envelopes; their IDs do not exist in your account. Either way, nothing was sent to a phone and nothing was billed.

View larger

Why webhooks are signed

Your callback URL lives on the public internet. Anyone who learns it — through logs, browser network tabs, mistyped DNS, a leaked screenshot — can POST forged payloads to it claiming a verification succeeded. Without a signature check, your application has no way to tell a real Akedly webhook from a fake one.

Signing solves this. Akedly hashes the request body together with a timestamp and a unique message ID, using a secret only you and Akedly know. You re-compute the hash on your side; if it matches, the request is genuine and untampered.

Where to find your secret

Each pipeline has its own signing secret, prefixed with whsec_. To retrieve it:

1. Open your pipeline in the dashboard
2. Scroll to the Webhooks section
3. Click View signing secret

For any OTP pipeline, including a V1 pipeline whose requests do not use waitForChannels, an authenticated pipeline owner with the pipelines:update permission can retrieve the secret once through GET /api/v1/pipelines/id/{pipelineID}/webhook-secret using the owner's user-session Authorization: Bearer token if the dashboard does not show the control. Signed channel events are emitted for eligible live V1.2 transactions and for V1 requests with waitForChannels: true; a V1 pipeline can manage its secret even when a request does not emit a channel event. After you copy it, acknowledge it with POST /api/v1/pipelines/id/{pipelineID}/webhook-secret/acknowledge. If it has already been acknowledged or is lost, regenerate it with POST /api/v1/pipelines/id/{pipelineID}/webhook-secret/regenerate; regeneration invalidates the previous secret.

The secret looks like this:

whsec_<base64-encoded key from the dashboard>

Treat it like a password. Store it in your environment, never commit it, and rotate it if you suspect exposure.

The signed headers

Every signed webhook arrives with three headers:

svix-id:        msg_2N4kJpQrSvT4Bh6jYwMnRb1cZx
svix-timestamp: 1745190600
svix-signature: v1,kU3+tF2dG8XzL9pQrSvT4Bh6jYwMnRb1cZxK7eNoAi0=

The svix-signature value contains one or more space-separated entries, each in the form v1,<base64>.

Webhook contract

Widget webhook contract

Utility webhook contract

V1 / V1.2 verification result contract

OTP channel event contract

Signing algorithm

If you're using one of the official Svix SDKs (next section), you don't need to implement this — it's here for reference and for any stack without an SDK.

1. Decode the secret:
     key = base64_decode( secret.replace("whsec_", "") )

2. Build the signed payload:
     signed = "${svix-id}.${svix-timestamp}.${raw_body}"

3. Compute the expected signature:
     expected = base64_encode( HMAC_SHA256(key, signed) )

4. Split svix-signature on spaces. For each entry, strip the `v1,` prefix before the
   constant-time compare with the computed base64 value. If any match, the request is valid.

5. Reject if | svix-timestamp − now | > 5 minutes (replay protection).

The raw_body is the unparsed request body bytes — don't JSON.parse then re-serialize, or you'll lose the exact byte sequence the signature was computed over.

Verify in your stack

Pick your language. The signing algorithm is identical across all of them — these snippets just wrap the math.

// npm install svix
const { Webhook } = require('svix')

const wh = new Webhook(process.env.AKEDLY_WEBHOOK_SECRET)

// rawBody must be the unparsed string body — not req.body (parsed JSON).
// In Express, mount express.raw({ type: 'application/json' }) on this route.
wh.verify(rawBody, req.headers) // throws WebhookVerificationError if invalid

# pip install svix
from svix.webhooks import Webhook
import os

wh = Webhook(os.environ["AKEDLY_WEBHOOK_SECRET"])

# payload must be the raw request body (bytes or str)
wh.verify(payload, headers)  # raises WebhookVerificationError if invalid

// go get github.com/svix/svix-webhooks/go
import (
    svix "github.com/svix/svix-webhooks/go"
    "io"
    "os"
)

wh, err := svix.NewWebhook(os.Getenv("AKEDLY_WEBHOOK_SECRET"))
if err != nil { /* handle */ }

payload, _ := io.ReadAll(r.Body)
err = wh.Verify(payload, r.Header) // returns error if invalid

// composer require svix/svix
use Svix\Webhook;

$wh = new Webhook(getenv('AKEDLY_WEBHOOK_SECRET'));

// $payload is the raw request body string
$wh->verify($payload, getallheaders()); // throws Exception if invalid

# gem install svix
require 'svix'

wh = Svix::Webhook.new(ENV['AKEDLY_WEBHOOK_SECRET'])

# payload is the raw request body string
wh.verify(payload, headers) # raises WebhookVerificationError if invalid

// No SDK? Verify HMAC-SHA256 manually with Node.js crypto.
// Same shape applies to any language with HMAC and base64.
const crypto = require('crypto')

function verify(rawBody, headers, secret) {
  const id = headers['svix-id']
  const ts = headers['svix-timestamp']
  const sigHeader = headers['svix-signature']

  // Replay protection: reject anything older than 5 minutes
  const now = Math.floor(Date.now() / 1000)
  if (Math.abs(now - parseInt(ts, 10)) > 300) return false

  // Strip prefix and base64-decode the secret to get the HMAC key
  const key = Buffer.from(secret.replace(/^whsec_/, ''), 'base64')

  // Sign "id.timestamp.body"
  const signed = `${id}.${ts}.${rawBody}`
  const expected = crypto.createHmac('sha256', key).update(signed).digest('base64')

  // Header may contain multiple "v1,sig" pairs — match any
  return sigHeader
    .split(' ')
    .map((p) => p.split(',')[1])
    .some((sig) => crypto.timingSafeEqual(Buffer.from(sig), Buffer.from(expected)))
}

Common pitfalls

Rotating the secret

If a secret leaks — or just on a routine schedule — click Regenerate in the pipeline's Webhooks section. Akedly issues a new whsec_... and immediately starts signing webhooks with it.
