Passkeys (WebAuthn) for V2 Widgets

Passkeys let your users verify with the biometric they already use to unlock their device — Face ID, Touch ID, Windows Hello, or a screen lock — instead of waiting for a one-time code. Built on the WebAuthn standard and layered directly onto the V2 Widget you already know.

Instant verification — no code to wait for. When a returning user has a passkey on their device, the widget skips OTP delivery entirely: one biometric prompt and they're verified.

This page is the V2 Widget path — passkeys also work on V1.2

Passkeys run on both Akedly surfaces. This guide covers the V2 Widget, where passkeys ride the widget's existing attempt lifecycle. If you integrate over the V1.2 REST API, use the dedicated V1.2 Passkeys guide for the six endpoint contracts, NO_PASSKEY fallback, SDK links, result proof, and backend callback. The legacy V1.0 REST API issues OTPs only.

Recommended, backward-compatible, and opt-in

Passkeys are the recommended path forward for V2 Widgets. They are fully backward-compatible — if you change nothing, your widget keeps running OTP exactly as it does today. Turn passkeys on when you're ready, one iframe attribute at a time.

Why passkeys

Faster — instant. No SMS or WhatsApp round-trip. A returning user with a passkey on their device verifies in a single biometric prompt, with nothing to type and no code to wait for.

Higher conversion. Removing the "wait for a code, switch apps, copy, paste" loop eliminates the biggest source of drop-off in phone verification.

More secure. Passkeys are device-bound public-key credentials. There is no shared secret to phish, intercept, or replay — the private key never leaves the user's device.

Lower cost. A successful passkey authentication is billed at a fraction — 60% by default — of that end user's frozen anchor rate. Enrollment is free, and only a successful authentication is ever charged.

How passkey authentications are priced

On the default factor mode a passkey charge is the plan's passkey factor × that end user's anchor rate, not your pipeline's current OTP rate.

Anchor rate. At enrollment, Akedly freezes the rate from that end user's first-ever OTP bill for your business and that phone number. That frozen rate is the basis for every later passkey charge for that user — it does not follow your pipeline rate or later rate changes. Two users on the same pipeline can therefore carry different passkey prices permanently.
The factor. 60% is the default on the plan, not a guarantee — your plan may carry a different factor.
No anchor, no charge — in factor mode. With no prior OTP bill to anchor to, a factor-mode charge works out to zero.
Fixed mode is the exception. An account can instead be put on a flat EGP rate per successful passkey authentication, which ignores the anchor entirely — so a fixed-mode account is charged even with no anchor. Factor mode is the default; check your plan if you are unsure which you are on.

Enrolling a passkey is always free, you are only billed on a successful passkey authentication, and OTP authentications are unchanged.

Passkeys end to end

A commentary walkthrough of the passkey experience.

Already using V2? Here's the one change

If you already run the V2 Widget, enabling passkeys is a single attribute on your iframe. Add the allow attribute so the embedded widget is permitted to invoke WebAuthn:

allow="publickey-credentials-get *; publickey-credentials-create *"

That's it. Here is the before → after for each common embed.

Add the allow attribute

<!-- Before -->
<iframe src="https://auth.akedly.io/auth?attemptId=..."></iframe>

<!-- After -->
<iframe
  src="https://auth.akedly.io/auth?attemptId=..."
  allow="publickey-credentials-get *; publickey-credentials-create *"
></iframe>

Prefer to scope the permission?

The wildcard * delegates WebAuthn to the iframe's origin. If you'd rather scope it explicitly to Akedly's auth origin, use:

allow="publickey-credentials-get https://auth.akedly.io; publickey-credentials-create https://auth.akedly.io"

That's the only change — nothing else moves

Do nothing and you keep OTP. The iframe URL stays …/auth?attemptId=… (only attemptId is required) — there are no new routes or parameters. Your postMessage, redirect, and webhook contracts are unchanged. There is nothing to do server-side: auth.akedly.io already serves the required Permissions-Policy and CSP frame-ancestors headers, so you only ever touch your own <iframe> tag.

How it works (end-user flow)

The passkey experience is woven into the existing widget flow. The user is never trapped on a passkey screen — a code is always one tap away.

Captcha. The user passes the standard Cloudflare Turnstile check, exactly as today.
Returning user with a passkey on this device. If the bound phone number already has a passkey on this device, the widget offers an optional "Use passkey" button. A "Use a code instead" option is always present alongside it.
Everyone else. If there's no passkey for this device, the widget goes straight to normal OTP — no extra screens.
Success. A passkey verification completes the attempt just like an OTP verification: same redirect, same webhook, same postMessage.
After an OTP success. Once a user verifies with a code, the widget may show an optional, skippable "Enable passkey" prompt so their next verification can be instant.

Nobody ever gets trapped

If passkeys are unsupported on the device or browser, the user cancels, or the account isn't entitled, the widget silently falls back to OTP. There is no dead end and no error shown to the user.

New integrator guide

New to Akedly? Don't start here. Passkeys are an enhancement of the V2 Widget, not a standalone product — set the widget up first, and passkeys ride on the same attempt lifecycle with no extra steps.

Start on the V2 Widget guide

The complete setup — create a widget in the dashboard, create a server-side attempt with an HMAC signature, receive an iframeUrl, and open the iframe — lives on the V2.0 Widget SDK page, which now includes a dedicated Passkeys section covering exactly what to add for each embed surface. Build your V2 integration there with the allow attribute from day one, and passkeys light up automatically once the current production rollout, your account entitlement, and the pipeline's Passkeys setting are all on (the latter is stored as pipeline.passkeyEnabled) — this page is the deeper passkey reference you return to afterward.

These short clips show both passkey ceremonies from the user's side:

Registering a passkey

First-time passkey registration in the widget.

Verifying with a saved passkey

Returning-user passkey verification in the widget.

Handling the result

The result contracts are identical to standard V2 — consumers should key only on type === "AUTH_SUCCESS" and tolerate extra optional fields. A passkey success may add one optional field, verificationMethod: "passkey".

postMessage

Name
type
Type
string
Description
"AUTH_SUCCESS". Key on this and nothing else — tolerate any extra optional fields.
Name
attemptId
Type
string
Description
The original attemptId you created.
Name
transactionId
Type
string
Description
The transaction identifier for this verification.
Name
redirectUrl
Type
string
Description
Optional. Present when a frontend callback URL is configured.
Name
timestamp
Type
string
Description
ISO 8601 timestamp of when authentication completed.
Name
verificationMethod
Type
string
Description
Optional. "passkey" when the user verified with a passkey. Absent for OTP.

postMessage (passkey success)

{
  "type": "AUTH_SUCCESS",
  "attemptId": "attempt_a1b2c3d4e5f6...",
  "transactionId": "pkreq_9f8e7d6c5b4a...",
  "redirectUrl": "https://yourapp.com/auth/callback?status=success&...",
  "timestamp": "2026-01-16T12:05:30.123Z",
  "verificationMethod": "passkey"
}

Redirect

The success redirect query string is unchanged:

…?status=success&transactionId=…&attemptId=…×tamp=…&meta_*

Webhook signing

The webhook envelope is byte-compatible with the standard V2 webhook — same shape and signing mechanism. Signing is best-effort for widget callbacks: headers are present when signing succeeds, but a callback is still sent if signing fails. For passkey verifications, note the following:

Name
transactionId
Type
string
Description
For a passkey verification this is an opaque passkey request id, not an OTP transaction id. Treat it as opaque — store it and echo it back, but don't parse or assume its format.
Name
verificationMethod
Type
string
Description
Optional. "passkey" when the user verified with a passkey.
Name
channel
Type
string
Description
Absent for passkey verifications — there is no OTP delivery channel (WhatsApp / SMS / Email) involved. Don't depend on this field being present.

Verify when signature headers are present

Passkey webhooks may include HMAC-SHA256 svix-id, svix-timestamp, and svix-signature headers when signing succeeds. Because the widget still sends callbacks if signing fails, missing headers mean the result is unverifiable — not proof of forgery. Verify the signature on the raw request bytes whenever the headers are present, and confirm important outcomes from trusted API state. See the webhook signing guide →

Platforms & surfaces

What you edit depends on how you embed the widget. The short version: web iframes add the allow attribute, full-page redirects need nothing, and mobile native apps must open the widget in a system browser — not a WebView (see below).

Enabling passkeys

Passkey availability depends on the current production configuration, account entitlement and pipeline settings. The checked-in backend defaults are not a promise about production access. Three gates decide whether the widget offers passkeys:

Name
Global rollout
Type
Akedly-controlled
Description
Passkeys are generally available. Akedly controls the global rollout switch.
Name
Account entitlement
Type
account access
Description
Granted automatically on the unverified-to-verified transition, so a verified account normally has it. The grant is transition-only: an account that has never verified receives nothing automatically, and one whose entitlement an admin revoked does not get it back by verifying again. An admin can also grant or revoke it directly, independently of verification.
Name
Passkeys
Type
pipeline toggle
Description
The dashboard exposes the pipeline setting as Passkeys. New pipelines are created with passkeys on; existing pipelines keep their current setting.

Track	Surface	Entitlement	Availability
V1	Pipeline editor / direct REST	Not applicable	No direct V1 passkey ceremony. The shared pipeline field does not add a V1 passkey route.
V1	Widget	All three gates	Supported through the widget when global rollout, account entitlement, and the linked Passkeys setting are true.
V1.2	Pipeline editor / direct REST	All three gates	Supported through /api/v1.2/transactions/passkey when the pipeline is configured for V1.2 and all three gates are true.
V1.2	Widget	Not applicable	Unavailable: widget attachment rejects V1.2 pipelines.
V2	Pipeline editor	All three gates	The editor controls the linked Passkeys setting; the runtime passkey path is the widget.
V2	Widget	All three gates	Supported through the widget when all three gates are true; widget validation exposes featureFlags.passkey_enabled.

In practice you only touch the pipeline toggle

The first two gates are controlled by Akedly and account configuration. In the dashboard, enable Passkeys in the pipeline's Passkeys section. If that setting is on and a returning user still gets an OTP, check account access and whether the user has a passkey on that device.

The pipeline control lives on the pipeline page, described in-product as "Let returning users verify with a device passkey and brand the experience":

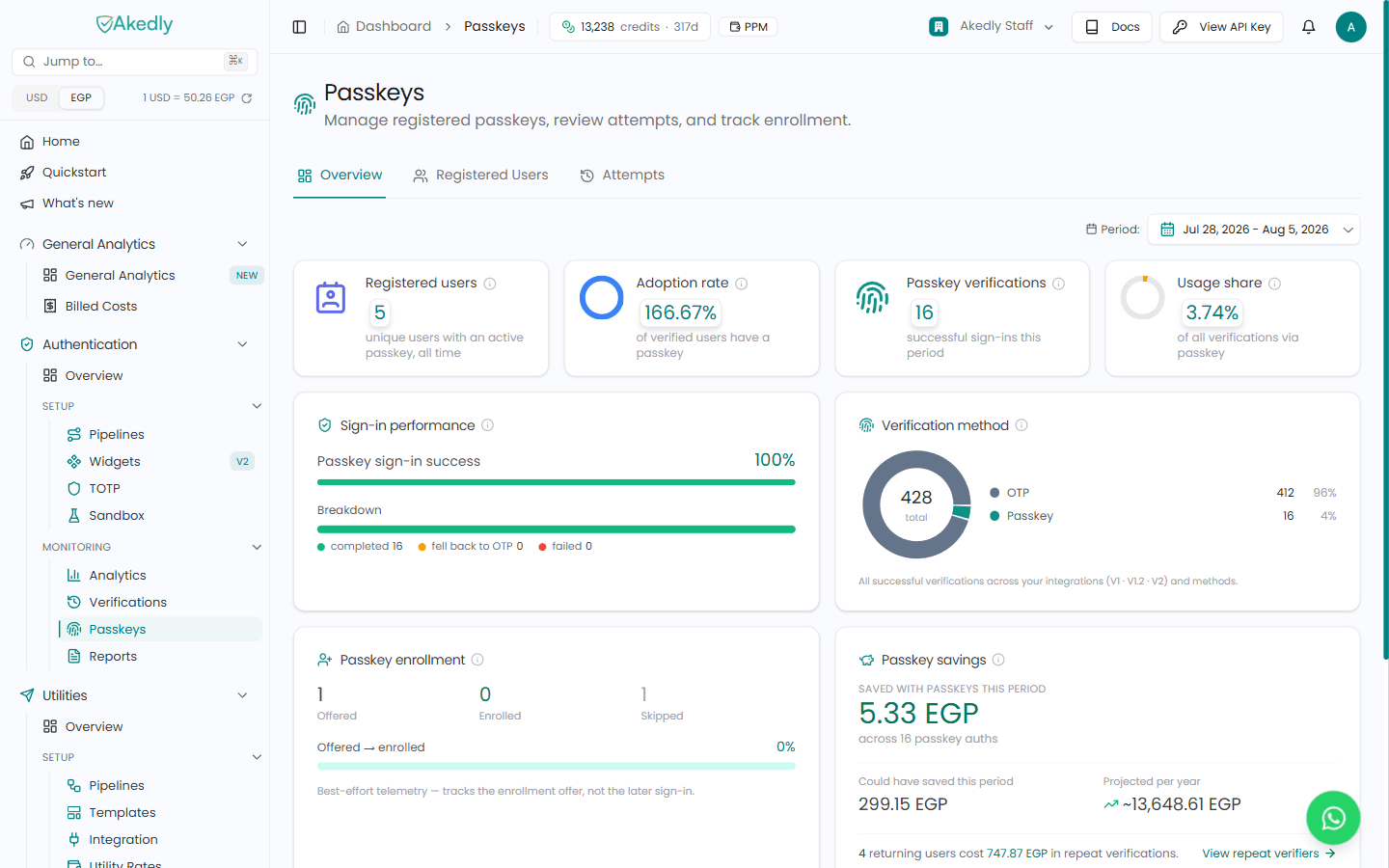

Once passkeys are live, enrolled credentials and passkey activity are visible under Monitoring → Authentication → Passkeys (/admin/passkeys) in the dashboard:

Turn it on when you're ready

Everything here is fully backward-compatible. Until all three gates are open, the widget runs OTP exactly as it does today. Add the allow attribute now, and passkeys will light up once the current production rollout, your account entitlement, and the pipeline setting all permit access — no further code changes needed.

Passkeys on V1.2

V1.2 passkeys now have a dedicated guide.

Open the V1.2 Passkeys guide

FAQ & gotchas

Local vs on-device testing

Where the ceremony runs — and therefore the relying-party (RP) ID the passkey binds to — is controlled by ceremonyOrigin:

Established local QA points the ceremony at the shared-cert dev auth-gateway origin (https://localhost:5174), binding to RP=localhost, which iOS Simulators and Android emulators accept. If the shared certificate files are absent, the dev server falls back to HTTP; configure ceremonyOrigin to the exact origin the server prints rather than mixing HTTP and HTTPS.
Production / real devices use https://auth.akedly.io, binding to RP=akedly.io.

Per-platform prerequisites for the local loop: iOS Simulator → iOS 16+ and signed into iCloud; Android emulator → Google Play Services plus a configured screen lock (Credential Manager refuses without one); Web → any WebAuthn-capable browser.

Android emulator: forward the host's dev ports

An Android emulator's localhost is the emulator, not your machine (the host loopback is reachable only via the emulator's 10.0.2.2 alias), so it can't reach the dev auth-gateway (:5174) or backend (:3000) at localhost. Run adb reverse tcp:5174 tcp:5174 && adb reverse tcp:3000 tcp:3000 so ceremonyOrigin stays https://localhost:5174 in the shared-cert setup — the dev RP is localhost, so the ceremony must be reached at a localhost origin (an IP like 10.0.2.2 cannot be a WebAuthn RP ID and isn't an allowed dev origin). If the gateway explicitly starts in its certificate-absent HTTP fallback, use http://localhost:5174 consistently instead. The iOS Simulator shares the host network, so localhost works there with no forwarding.

A localhost RP cannot bind on a physical device

Real-device QA must use the https://auth.akedly.io origin (RP=akedly.io) — a localhost RP only works on simulators and emulators. A full end-to-end V1.2 sandbox (web, the mobile SDK reference apps, and a Playwright + Chrome virtual-authenticator gate) exists for headless passkey QA without a physical device.

Support & resources

V2.0 Widget SDK guide: /authentication/v2
Webhook signing guide: /webhooks
Dashboard: https://app.akedly.io
Support: support@akedly.io
