V1.2 REST API

Get a challenge and send the OTP

Request a challenge, send the OTP with the proofs it requires, and set the OTP message language.

Step 1: Get Challenge

Request the challenge and Turnstile configuration for the given pipeline. The response tells your client which work is required before sending an OTP.

Query Parameters

Name
APIKey
Type
string
Description
Your API key, from Account & Billing → API Keys in the dashboard.
Name
pipelineID
Type
string
Description
The unique identifier of your pipeline, found in Basic Details.

Response Fields

Name
challengeRequired
Type
boolean
Description
Whether PoW is required for this pipeline. Branch on this field first. When it is false the response contains no challenge, difficulty, challengeToken, expiresAt, algorithm or instructions at all — skip PoW entirely and omit powSolution from Step 2.
Name
challenge
Type
string (when challengeRequired is true)
Description
64-character hex string. The PoW challenge to solve. Present only when challengeRequired is true and omitted when PoW is disabled for the pipeline.
Name
difficulty
Type
number (when challengeRequired is true)
Description
Number of leading hex zeros required in the hash. Higher = harder. Set by the server per request and adaptive to traffic — see Difficulty is adaptive. Never hardcode it.
Name
challengeToken
Type
string (when challengeRequired is true)
Description
Server-signed token binding this challenge to your request. Pass it back in Step 2. Omitted when PoW is disabled for the pipeline.
Name
expiresAt
Type
string
Description
ISO 8601 timestamp for when this challenge stops being accepted. The TTL is not constant — it scales with difficulty, so read this field rather than assuming a fixed window. Budget your solve-and-retry against it; once it passes, request a fresh challenge.
Name
algorithm
Type
string
Description
Hash algorithm for the challenge. Currently always "sha256".
Name
instructions
Type
string
Description
Human-readable description of the work required, for logging and debugging. Do not parse it.
Name
devMode
Type
boolean
Description
Present and true only while the pipeline's dev mode is active and bypasses PoW. Together with challengeRequired: false, the response then carries the message "Dev mode active - PoW challenge bypassed".
Name
turnstile.required
Type
boolean
Description
Whether Turnstile verification is required for this pipeline. Off by default.
Name
turnstile.siteKey
Type
string | null
Description
Cloudflare Turnstile site key when configured; otherwise null. Use it with the Shield SDK only when turnstile.required is true.

Request

GEThttps://api.akedly.io/api/v1.2/transactions/challenge

curl "https://api.akedly.io/api/v1.2/transactions/challenge?APIKey=YOUR_API_KEY&pipelineID=YOUR_PIPELINE_ID"

const res = await fetch(
  `https://api.akedly.io/api/v1.2/transactions/challenge` +
  `?APIKey=${apiKey}&pipelineID=${pipelineID}`
);
const { data } = await res.json();

import requests

res = requests.get(
    "https://api.akedly.io/api/v1.2/transactions/challenge",
    params={"APIKey": api_key, "pipelineID": pipeline_id}
)
data = res.json()["data"]

Response

JSON200 Status

{
  "status": "success",
  "data": {
    "challengeRequired": true,
    "challengeToken": "eyJhbGciOiJIUzI1NiIs...",
    "challenge": "a1b2c3d4e5f6...64 hex chars",
    "difficulty": 3,
    "expiresAt": "2026-03-25T12:01:30.000Z",
    "algorithm": "sha256",
    "instructions": "Find nonce where SHA256(challenge + ':' + nonce) starts with <difficulty> zeros",
    "turnstile": {
      "required": true,
      "siteKey": "0x4AAAAAAB87rUwOea8lABKZ"
    }
  }
}

PoW-disabled response

When PoW is disabled for the pipeline, the response contains challengeRequired: false and does not include challenge, difficulty, or challengeToken. Do not call the solver in that case. The turnstile object still reports whether Turnstile is required.

Step 2: Send OTP

Submit the applicable proofs along with the user's phone number or email address. The server validates enabled proofs, then creates and sends the OTP in a single call.

Request Body

Name
APIKey
Type
string
Description
Your API key, from Account & Billing → API Keys in the dashboard.
Name
pipelineID
Type
string
Description
Your pipeline ID.
Name
verificationAddress
Type
JSON
Description
JSON object with phoneNumber, email, or both. At least one address is required; each supplied address must have a matching verification method in the pipeline. Arabic-Indic (٠-٩) and Persian (۰-۹) digits in phoneNumber are accepted and converted to ASCII digits.
Name
powSolution
Type
JSON
Description
Object containing challengeToken (from Step 1) and nonce (from the PoW solver). Include it only when challengeRequired is true.
Name
turnstileToken
Type
string
Description
Turnstile verification token. Required when turnstile.required was true in Step 1.
Name
otp
Type
string
Requirement
Optional
Description
Bring your own 4, 5 or 6 digit OTP code. When provided, billing switches to pay-per-message upon send.
Name
digits
Type
number
Requirement
Optional
Description
OTP length, 4, 5 or 6. Defaults to 6. Out-of-range values are ignored and fall back to 6 — V1.2 never rejects a request over digits. To try a non-default length without sending anything, see Dev Mode & Test Pairs.
Name
channel
Type
string
Requirement
Optional
Description
Send this code on a specific channel — whatsapp, telegram or sms. Requires verificationAddress.phoneNumber. Omit it and the pipeline routes as it always has. Must be switched on for your account and pipeline first — see Letting Users Choose Their Channel.
Name
otpLanguage
Type
string
Requirement
Optional
Description
OTP message language for WhatsApp and SMS. Overrides the pipeline's OTP Language for this request. See accepted values and defaults.
Name
template
Type
object
Requirement
Optional
Description
{ id, variables } — send this OTP's WhatsApp message in your own approved OTP template wording. Choose it on your server. It must be Approved in the language the OTP uses (otpLanguage when supplied, otherwise the pipeline's OTP Language), or the request fails with a 400 before anything is sent.

Request Headers

Name
Content-Type
Type
string
Description
Must be application/json.
Name
x-end-user-ip
Type
string
Requirement
Optional
Description
Enables the per-end-user-IP rate-limit dimension (defaults: 5/min, 20/hour, 50/day per pipeline). If you send it, it must be the real end user's IPv4 or IPv6 address — the one that hit your backend from the browser or mobile device, not your backend server's IP. When omitted, Akedly falls back to the TCP connection IP; for a backend-to-backend call that's your server, so Akedly detects loopback and private IPs (127.0.0.1, 10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16, ::1, CGNAT, link-local) and simply skips the per-IP check for them. Per-phone-number and per-pipeline limits always apply regardless.

If you opt in, forward the user's IP — not your server's

Per-end-user-IP rate limiting is off by default for backend-proxy setups and only activates when you send x-end-user-ip. The usual mistake is sending your load balancer's IP instead of the user's, which quietly caps every user against a single identifier. Below are safe extraction patterns per framework — skip this section entirely if you don't need per-IP rate limiting (phone and pipeline limits still apply).

Extracting the end-user IP on your backend

Backend

// Put this once, before any routes. Tells Express to trust X-Forwarded-For
// from your reverse proxy (Cloudflare, AWS ALB, Nginx, Fly.io, etc.).
app.set('trust proxy', 1);

app.post('/auth/akedly/send', async (req, res) => {
  // Now req.ip is the REAL end-user IP, not your LB's.
  const r = await fetch('https://api.akedly.io/api/v1.2/transactions/send', {
    method: 'POST',
    headers: {
      'Content-Type': 'application/json',
      'x-end-user-ip': req.ip,
    },
    body: JSON.stringify({ /* ... */ }),
  });
  res.status(r.status).json(await r.json());
});

import { headers } from 'next/headers';

export async function sendOTP(/* ... */) {
  const h = await headers();
  // Cloudflare: cf-connecting-ip. Vercel/most ALBs: x-forwarded-for (first entry).
  const endUserIP =
    h.get('cf-connecting-ip') ||
    h.get('x-real-ip') ||
    h.get('x-forwarded-for')?.split(',')[0].trim();

  const r = await fetch('https://api.akedly.io/api/v1.2/transactions/send', {
    method: 'POST',
    headers: {
      'Content-Type': 'application/json',
      ...(endUserIP && { 'x-end-user-ip': endUserIP }),
    },
    body: JSON.stringify({ /* ... */ }),
  });
  return r.json();
}

from flask import request

def send_otp():
    # Flask: request.remote_addr is the connection IP. Behind a proxy, wrap
    # your app with ProxyFix (from werkzeug.middleware.proxy_fix import ProxyFix)
    # so request.remote_addr becomes the real client IP instead of the LB's.
    end_user_ip = request.remote_addr
    requests.post(
        'https://api.akedly.io/api/v1.2/transactions/send',
        headers={
            'Content-Type': 'application/json',
            'x-end-user-ip': end_user_ip,
        },
        json={...},
    )

// Behind Cloudflare / AWS ALB / Nginx — read the forwarded header directly.
// Never trust $_SERVER['REMOTE_ADDR'] alone if your app sits behind a proxy.
$endUserIP = $_SERVER['HTTP_CF_CONNECTING_IP']
    ?? explode(',', $_SERVER['HTTP_X_FORWARDED_FOR'] ?? '')[0]
    ?? $_SERVER['REMOTE_ADDR'];

$ch = curl_init('https://api.akedly.io/api/v1.2/transactions/send');
curl_setopt($ch, CURLOPT_HTTPHEADER, [
    'Content-Type: application/json',
    'x-end-user-ip: ' . trim($endUserIP),
]);

Three independent rate-limit dimensions

V1.2 supports three rate-limit dimensions: per phone number and per pipeline (always on), and per end-user IP (opt-in via x-end-user-ip). If you do opt in from a mobile or native app that proxies through your backend, pass the IP of the device that called you — do not read the device's IP on the device itself; clients cannot reliably know their own public IP and can lie.

All three sets of caps are configured on the pipeline itself, per minute, per hour and per day. The per-pipeline caps do double duty: they are also the denominator the adaptive PoW ramp measures utilisation against, so raising them raises the traffic level at which difficulty starts climbing.

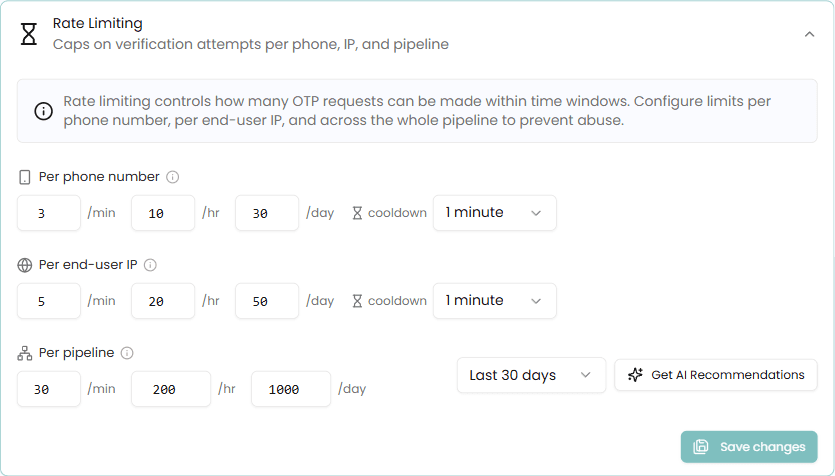

Pipeline rate limiting settings: caps per phone number, per end-user IP and per pipeline

Response Fields

Name
status
Type
string
Description
"success" or "error".
Name
data.transactionID
Type
string
Description
The main transaction ID for tracking.
Name
data.transactionReqID
Type
string | null
Description
The transaction request ID. Save this for Step 3 verification. It can be null if the activation result carried no request record. Step 3 cannot run without it, so check it before you move on.
Name
data.channels
Type
string[]
Description
A bounded activation snapshot of the unique channels persisted at response time (for example, ["whatsapp", "email"]). WhatsApp can still be awaiting a provider result when the five-second wait ends, so this is not a final delivery receipt. A later signed otp.channels.updated event can correct the set after a late WhatsApp failure. Possible values: "whatsapp", "telegram", "sms", "email".
Name
data.expiresAt
Type
string
Description
ISO 8601 timestamp indicating when the transaction expires.
Name
data.otpLanguage
Type
string
Description
Always present: en or ar. The language the OTP is requested in, not a delivery receipt.
Name
data.template
Type
object
Description
Present when a custom template was selected, in the request or by the pipeline default: { id, language } as resolved at creation. It does not confirm which channel or template delivered the code.
Name
message
Type
string
Description
"OTP sent successfully".

Custom WhatsApp wording

Add a template in the dashboard, wait for Approved, then pass it as template: { id }. See the OTP templates guide for variables, language, pipeline defaults and fallback.

Multi-Channel Delivery

OTP delivery follows smart channel routing: WhatsApp (preferred), Telegram (if available), SMS (fallback), and email (always sent when address provided). The channels array in the response is a bounded activation snapshot, not a final delivery receipt. For a later WhatsApp failure or fallback update, consume the signed otp.channels.updated event.

Request

POSThttps://api.akedly.io/api/v1.2/transactions/send

{
  "APIKey": "6e1d6585bbe17f6abc80cf10a1********",
  "pipelineID": "6748*******f948b29ef",
  "verificationAddress": {
    "phoneNumber": "+20155****2491",
    "email": "user@example.com"
  },
  "powSolution": {
    "challengeToken": "eyJhbGciOiJIUzI1NiIs...",
    "nonce": 48291
  },
  "turnstileToken": "0.AqW3x9...",
  "digits": 6
}

{
  "APIKey": "6e1d6585bbe17f6abc80cf10a1********",
  "pipelineID": "6748*******f948b29ef",
  "verificationAddress": {
    "phoneNumber": "+20155****2491"
  },
  "powSolution": {
    "challengeToken": "eyJhbGciOiJIUzI1NiIs...",
    "nonce": 48291
  },
  "turnstileToken": "0.AqW3x9...",
  "otp": "<your-4-to-6-digit-otp>"
}

{
  "APIKey": "6e1d6585bbe17f6abc80cf10a1********",
  "pipelineID": "6748*******f948b29ef",
  "verificationAddress": {
    "phoneNumber": "+20155****2491"
  },
  "powSolution": {
    "challengeToken": "eyJhbGciOiJIUzI1NiIs...",
    "nonce": 48291
  },
  "turnstileToken": "0.AqW3x9...",
  "template": {
    "id": "68d0f2a9c1b2d3e4f5a6b7c8",
    "variables": { "purpose": "Login", "supportPhone": "19222" }
  }
}

{
  "APIKey": "<your-api-key>",
  "pipelineID": "<your-pipeline-id>",
  "verificationAddress": {
    "phoneNumber": "<phone-number-with-country-code>"
  },
  "otpLanguage": "ar",
  "powSolution": {
    "challengeToken": "<challenge-token>",
    "nonce": 48291
  },
  "turnstileToken": "<turnstile-token>"
}

Response

JSON200 Status

{
  "status": "success",
  "data": {
    "otpLanguage": "en",
    "transactionID": "a77549536888557729a0e4cd...",
    "transactionReqID": "66726b726cdd6713",
    "channels": ["whatsapp", "email"],
    "expiresAt": "2026-03-25T12:03:00.000Z"
  },
  "message": "OTP sent successfully"
}

{
  "status": "success",
  "data": {
    "otpLanguage": "en",
    "transactionID": "ae2eacaebe3ed78b105498d5...",
    "transactionReqID": "68b4a1e8d686446a498008bd",
    "channels": ["whatsapp"],
    "expiresAt": "2026-03-25T12:03:00.000Z"
  },
  "message": "OTP sent successfully"
}

{
  "status": "success",
  "data": {
    "otpLanguage": "en",
    "transactionID": "a77549536888557729a0e4cd...",
    "transactionReqID": "66726b726cdd6713",
    "channels": ["whatsapp"],
    "expiresAt": "2026-03-25T12:03:00.000Z",
    "template": {
      "id": "68d0f2a9c1b2d3e4f5a6b7c8",
      "language": "en"
    }
  },
  "message": "OTP sent successfully"
}

Response

JSON429 Rate Limit

{
  "status": "error",
  "code": "RATE_LIMIT_PHONENUMBER_PERMINUTE",
  "message": "Rate limit exceeded for phoneNumber per minute",
  "retryable": true,
  "retryAfter": "2026-03-25T12:00:47.000Z",
  "cooldownSeconds": 47,
  "details": {
    "type": "phoneNumber",
    "window": "perMinute",
    "max": 3,
    "current": 3
  }
}

OTP message language

Send top-level otpLanguage on V1 transaction creation, V1.2 send, or V2 create-attempt to override the pipeline's OTP Language for one request. An absent field or null uses the pipeline's OTP Language.

Accepted values are en or ar in any letter case, optionally followed by - or _ and two letters or three digits. For example, AR, ar-EG, en_GB and ar-001 resolve to ar, ar, en and ar. The raw string is checked without trimming.

Leading or trailing spaces, words such as arabic, other languages such as fr, script tags such as ar-Arab, "", numbers, arrays, objects and booleans return HTTP 400 with INVALID_OTP_LANGUAGE. Correct the value before retrying.

V1.2 checks this after the proof-of-work and Turnstile checks. When proof-of-work is enabled, a solved challenge is spent, so fetch and solve a new challenge before retrying. When Turnstile is required, obtain a fresh Turnstile token before retrying. Unlike out-of-range digits, an invalid otpLanguage is rejected.

Successful responses include data.otpLanguage — ar for the OTP language request example above — the language the OTP is requested in, not a delivery receipt.

A custom template, whether explicitly selected or the pipeline default, must be Approved in the requested language. Otherwise the request returns HTTP 400 — TEMPLATE_NOT_APPROVED, or TEMPLATE_REJECTED if that language was rejected — and never falls back to another language or the Built-in default at creation. See template errors.

WhatsApp and SMS language

The language applies to WhatsApp and SMS. On your own WhatsApp account, a Built-in default Arabic OTP may arrive in English until the Arabic template is approved. The template is set up automatically. Approval usually takes seconds, but this timing is not guaranteed. Akedly's own WhatsApp sender has its templates pre-approved. Arabic SMS is kept to one message, so a long company name can be shortened. A custom template that is not approved in the requested language returns HTTP 400 and never falls back.
